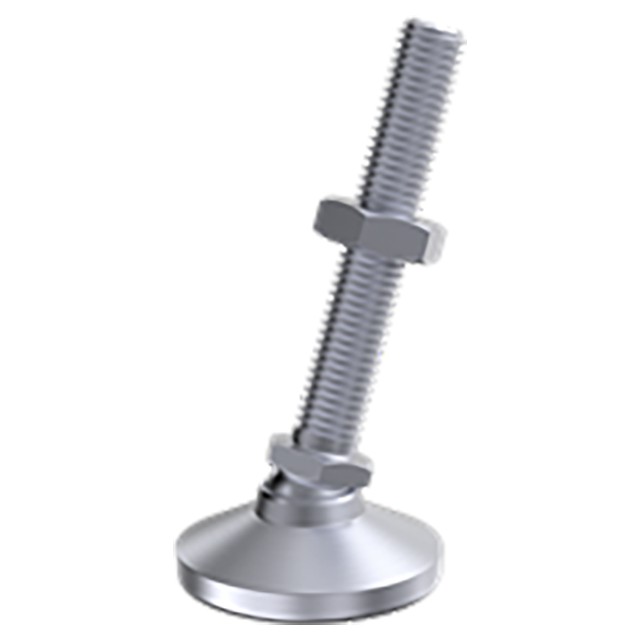

Stud Leveling Feet-Steel, Zinc Plated
High-quality, heavy-duty leveling foot with a large-diameter pad and integral stud. Stud and swivel ball are one solid piece. Large swivel ball provides high load capacity with a 20° total swivel angle. Made in USA.
Application Information
A Stud Leveling Foot can be used as a clamp rest for a Tapped-Heel Clamp Strap
Design Considerations & Safety Precautions
Rated load capacity represents safe static load with the standard stud at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Load capacity will drop significantly with longer studs.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | Carburized-Hardened | Yellow Chromate or Clear Zinc Plated | Yes | Yes |
| Pad | 1215 Steel | - | Yellow Chromate or Clear Zinc Plated | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C Diameter (mm) | D (mm) | E (mm) | F (mm) | Load Rating (kg) |
| M16 | 2mm | 24mm | 63.5mm | 8mm | 32mm | 51mm | 3300 kg |
