Carr Lane CLM-20-CLFR | M5 Thread x 0.8mm Pitch Carr Lock Face-Mount Receiver Bushing

Carr Lock Face-Mount Receiver Bushings

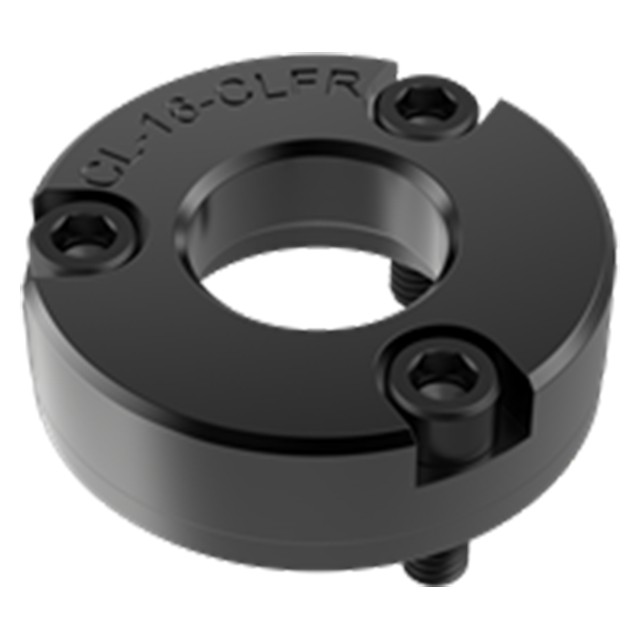

The Carr Lock System requires that each Carr Lock Clamp be used together with a Carr Lock Receiver Bushing – either the face-mount type or the back-mount type. The clamp's locking balls engage the angled ID section of the Receiver Bushing, pulling the clamp firmly downward. Face-Mount Receiver Bushings can be bolted into a slip-fit bored hole from above the subplate, with three socket-head cap screws. Made in USA.

Application Information

Each mounting point consists of three components: (1) Carr Lock Clamp, with a precisely ground shank (2) Carr Lock Liner Bushing or clearance hole in the top plate (3) Carr Lock Receiver Bushing in the subplate.

Installation

Face-Mount Receiver Bushings can be bolted into a slip-fit bored hole from above the subplate, with three socket-head cap screws (furnished). The installation hole must be jig bored for accurate size and location. Installed bushings will be approximately .012" below the subplate's top surface.

Material

Parts Specification
