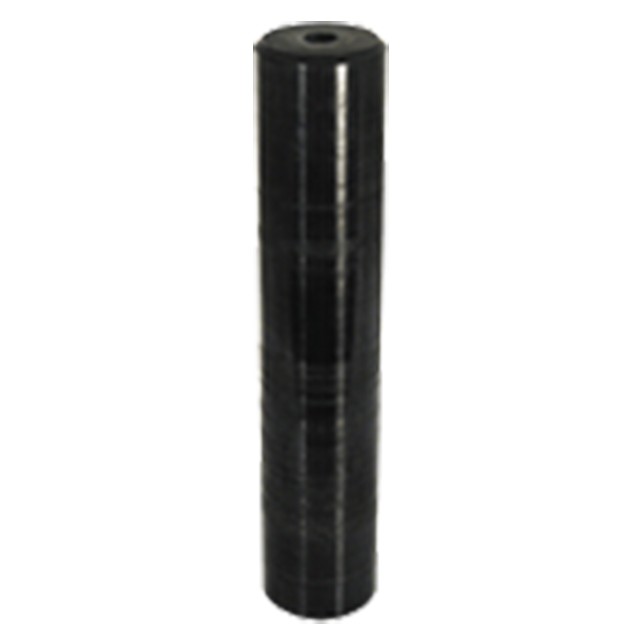

Carr Lane CLM-20-PFKR | 20mm Diameter Steel Black Oxide Coated Pallet Fixture Key

Pallet Fixture Keys

Used for mounting tooling plates and blocks on standard DIN pallets. Each pallet requires one center key and one radial key (for orientation). If desired, the radial key can be removed after fastening the pallet to the machine table. The tapped hole in the top of each pin makes insertion and removal easier. Made in USA.

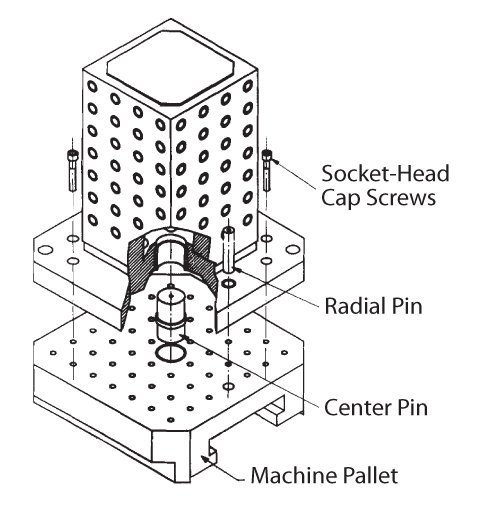

Application Information

Each pallet requires one center key and one radial key (for orientation).

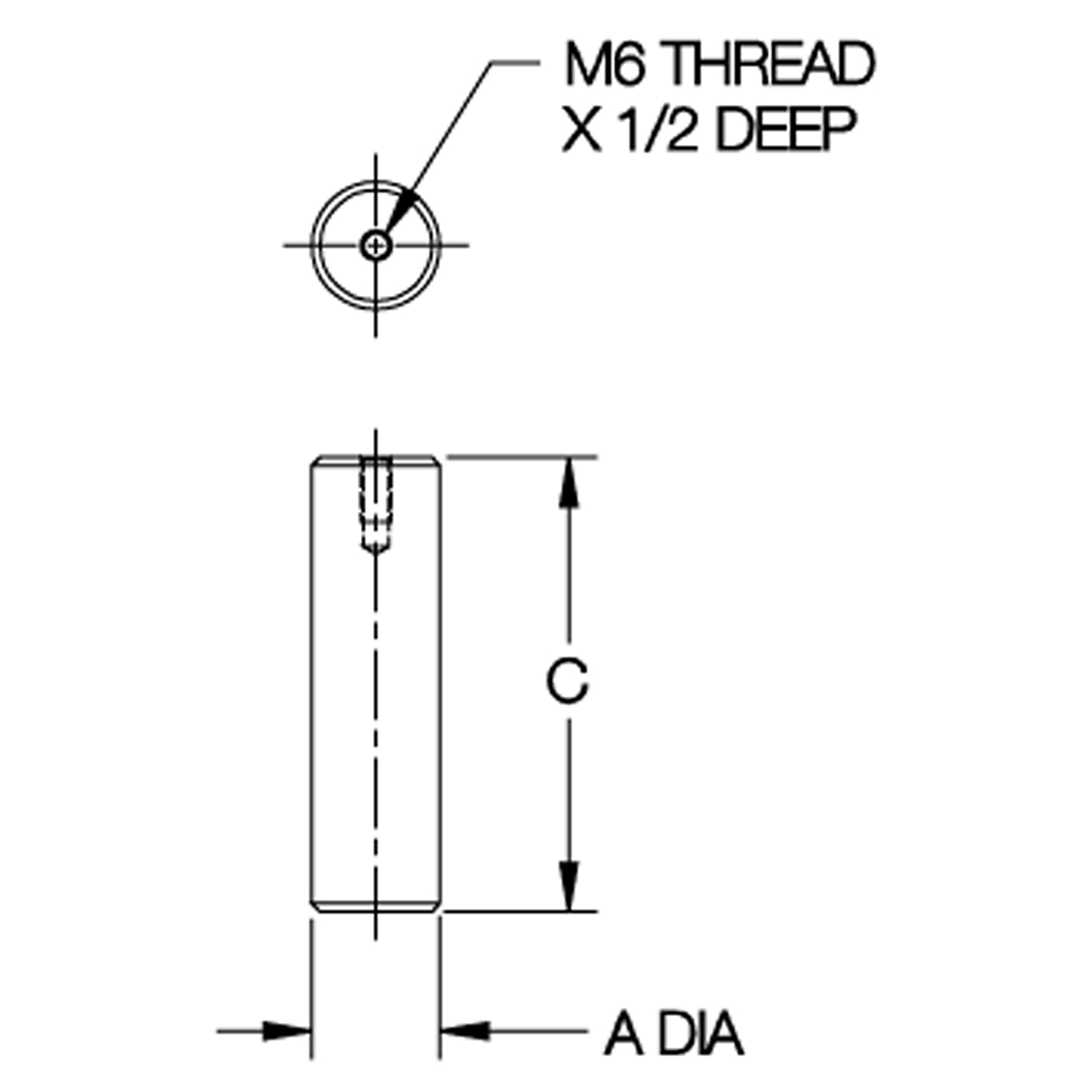

Material

Parts Specification
