Carr Lane CLM-20-SGB | M5 Screw x 20mm Diameter Black Oxide Coated Square Gripper

$21.26
Brand:
Carr Lane
Diameter (Inch):
25/32"
Diameter (Decimal Inch):
0.7874"
Diameter (mm):
20.00mm
SKU:
50016325
UPC:
Weight:
0.07 LBS
Shipping:
Calculated at Checkout

Square Grippers-Counterbored

Square Grippers are similar to Round Grippers, but their shape is useful when positive resistance to rotation is required (because they can be mounted against a step to prevent rotation). These serrated grippers are hard, replaceable inserts used to provide additional holding force and/or wear resistance when installed in a fixture. They are designed to slightly penetrate the workpiece to significantly increase gripping force, rather than relying on static friction alone. Made in USA.

Application Information

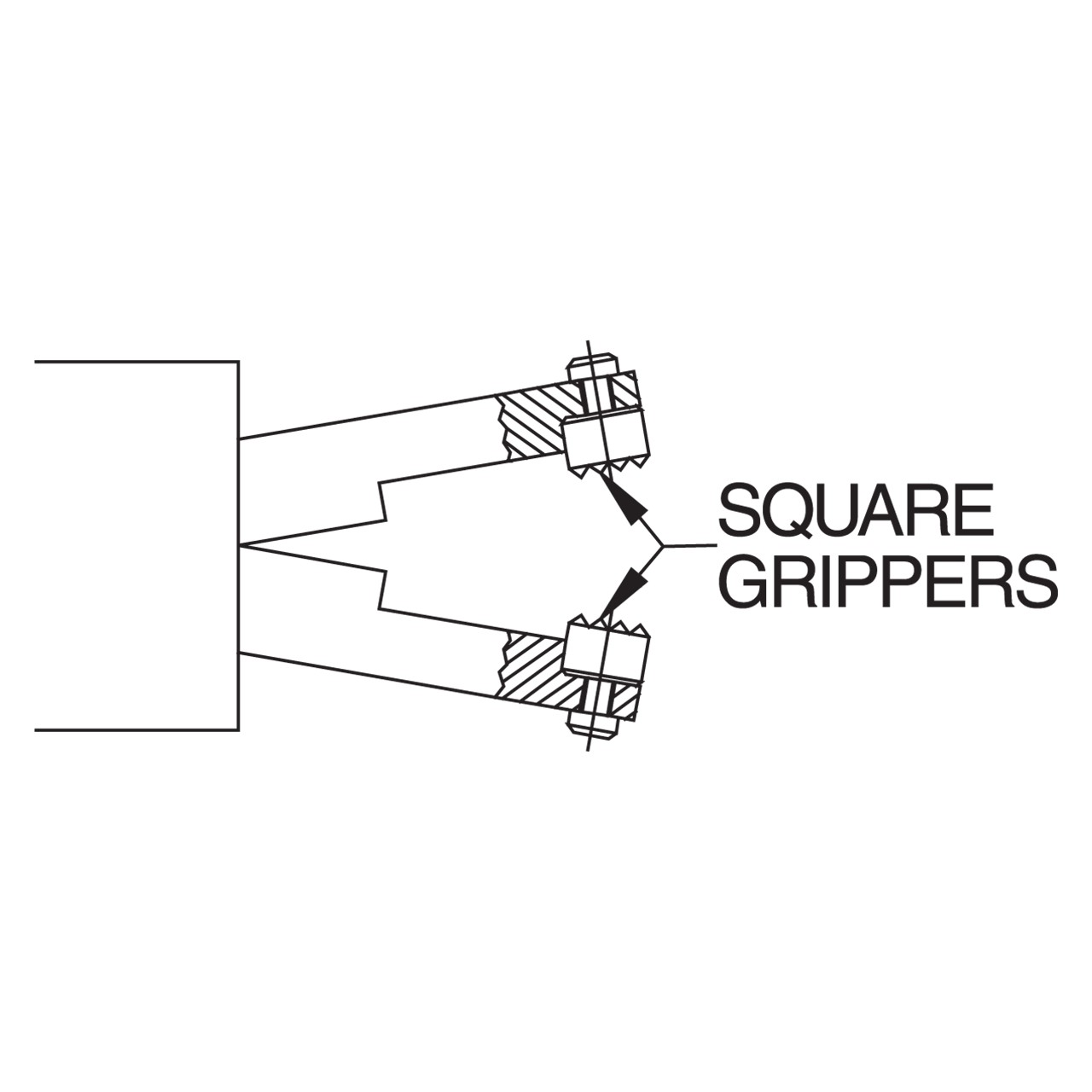

Square Grippers can be mounted against a step for positive resistance to rotation.

Installation

Counterbored grippers are useful whenever fastening from behind or the side is not possible. Fasten with a standard socket-head cap screw. Grippers can be recess-mounted in a flat-bottom hole, or surface mounted to use as a rest pad. When grippers are installed in a hole, they should project 50 to 100% of serration height for maximum effectiveness.

Material

Material Heat Treat Finish DFARS RoHS
M-2 Tool Steel Heat Treated Rc 60-62 Black Oxide Yes Yes

Parts Specification

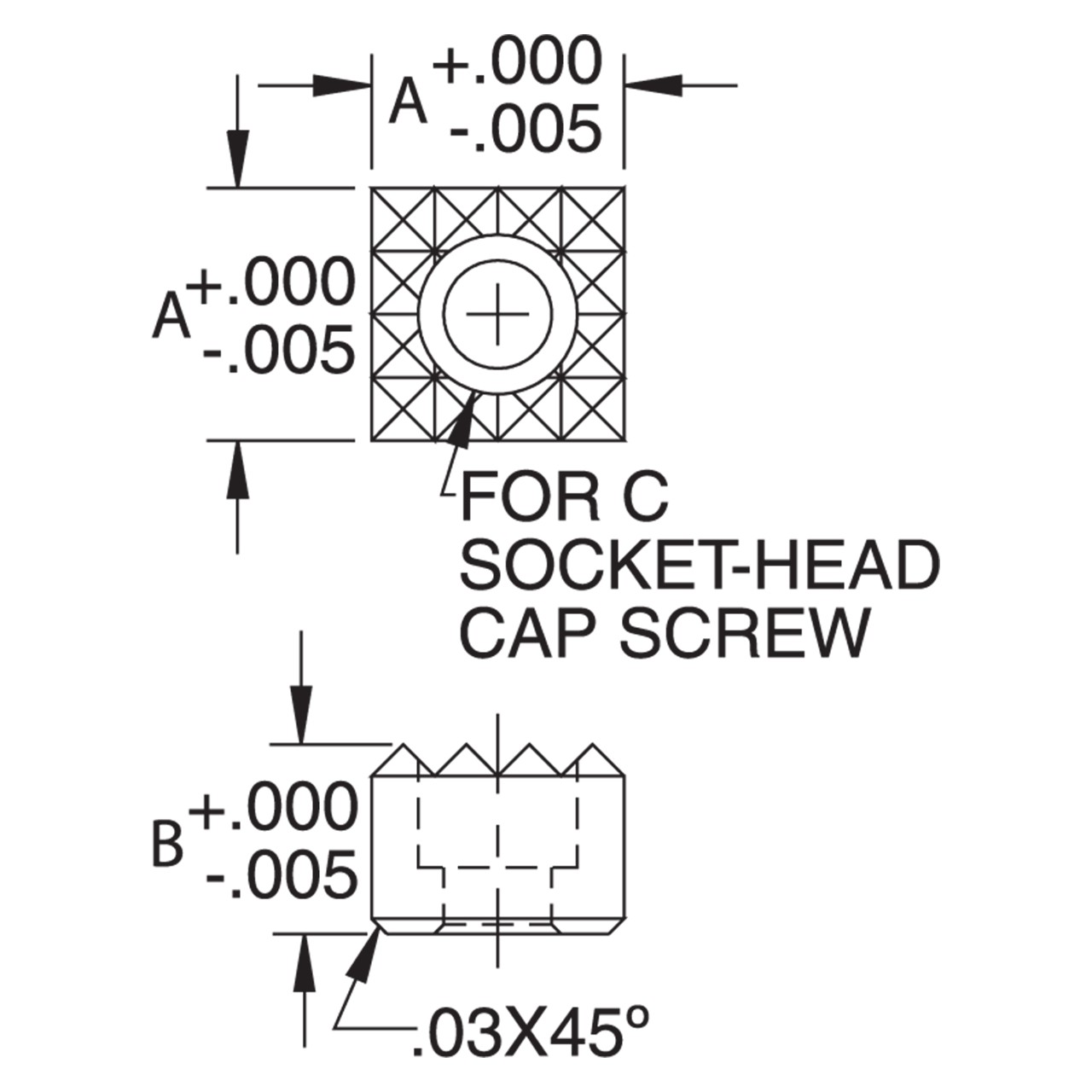

A (mm)B (mm)C Mounting ScrewSerrationsSerration Dimensions
20mm12mmM5Fine3.2x90°

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
