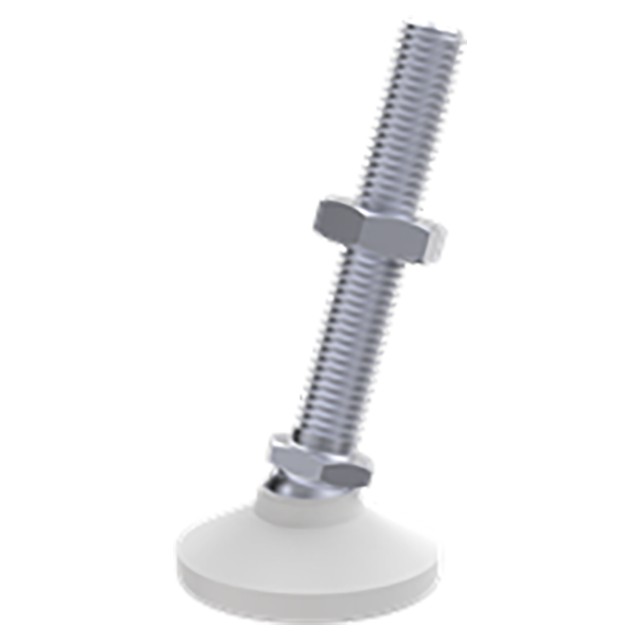

High-quality, heavy-duty leveling foot with a large-diameter pad and integral stud. Stud and swivel ball are one solid piece. Large swivel ball provides a 20ยฐ total swivel angle. The Delrin pad prevents marring, but has a lower load capacity than a steel pad. Made in USA.
A Stud Leveling Foot can be used as a clamp rest for a Tapped-Heel Clamp Strap
Rated load capacity represents safe static load with the standard stud at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Load capacity will drop significantly with longer studs.
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | Carburized-Hardened | Yellow Chromate or Clear Zinc Plated | Yes | Yes |
| Pad | White Delrin 500 | - | - | Yes | Yes |
| A Thread | Thread Pitch (mm) | B (mm) | C Diameter (mm) | D (mm) | E (mm) | F (mm) | Load Rating (kg) |
| M20 | 2.5mm | 30mm | 76mm | 12.5mm | 38mm | 51mm | 800 kg |
