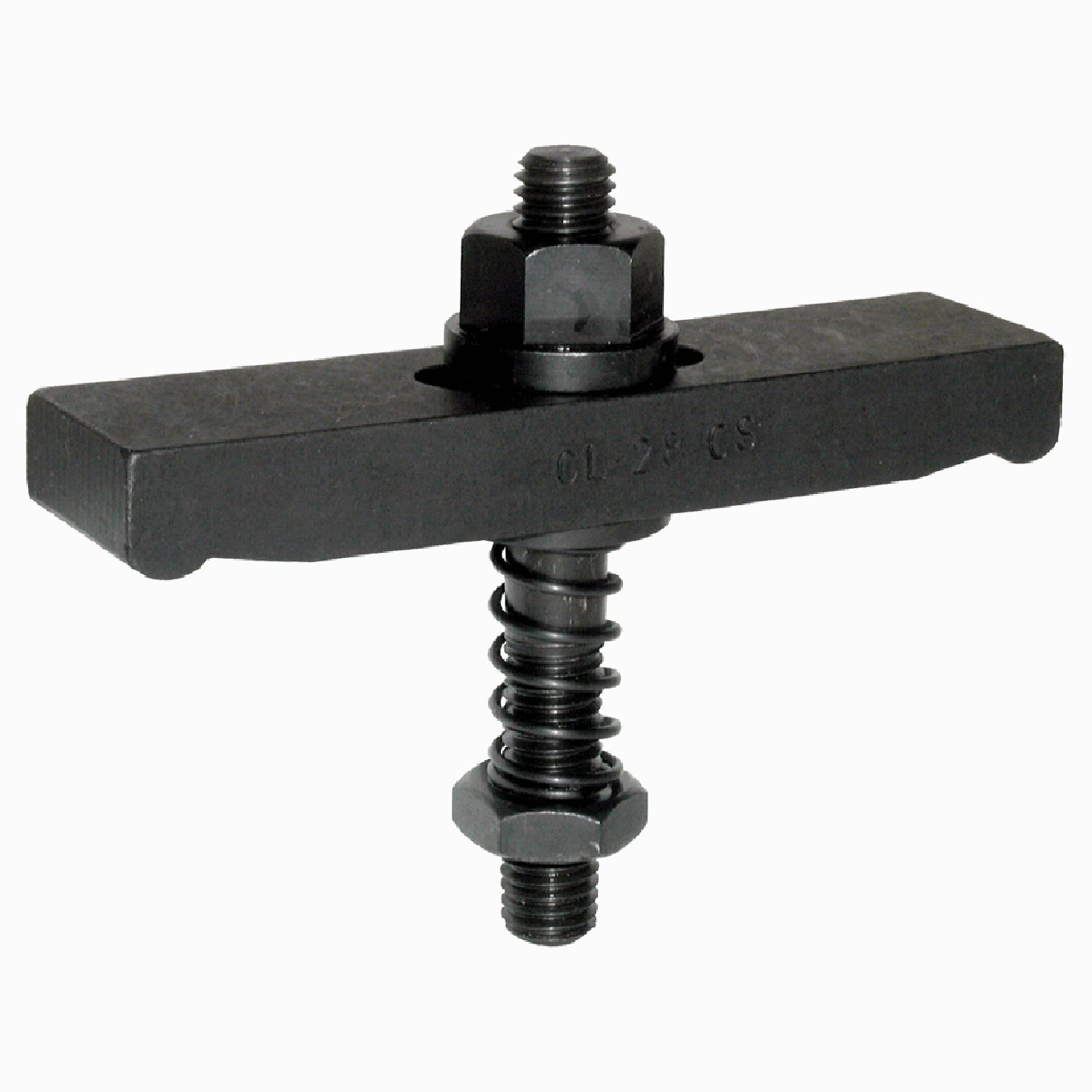

Carr Lane CLM-23-DEA-2 | M20 Thread x 2.5mm Pitch Double-End Clamp Strap

$63.10
Brand:
Carr Lane
Pitch (Inch):
3/32"
Pitch (Decimal Inch):
0.0984"
Pitch (mm):
2.50mm
Thread:
M20
SKU:
50022630
UPC:
Weight:
4.43 LBS
Shipping:
Calculated at Checkout

Double-End Clamp Strap Assembly

Heavy-duty steel clamp strap with two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading. Standard radius nose at each end provides firm workpiece contact. Made in USA.

Application Information

Double-End Clamp Straps have two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading.

Assembly with Flange Nut (-2)

This clamp assembly includes a Double-End Gooseneck Clamp Strap plus the following Items:

Flange Nut

Clamping Stud

Clamp Spring

Flat Washer

Jam Nut

Material

Material Heat Treat Finish RoHS RoHS
1018 Steel Carburized Hardened Black Oxide ✔ ✔

Parts Specification

Thread SizeThread Pitch (mm)A (mm)B (mm)C (mm)Clamp StrapClamp SpringFlat WasherClamping StudJam NutFlange Nut
M202.5mm203mm44.5mm25.5mmCL-39-CSCL-13-SPGCLM-10-FWCLM-20x125-STUDCLM-20-JNCLM-20-FN
