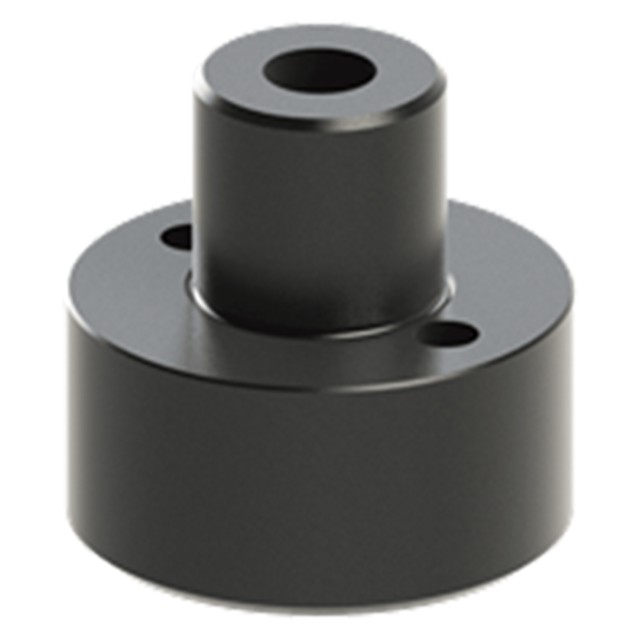

Center Locating Keys – Type 4
Center Locating Keys are used to precisely center a fixture on a rotary table. They are used for mounting Quintus Quick-Change Risers. Riser Blocks, and Round Tooling Plates, which all have a standard 25mm center hole. To accomplish this, all Center Locating Keys have a 25mm upper diameter, but have one of four different designs so that the bottom diameter fits the rotary table's center hole. Made in USA.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 Steel | Heat Treated Rc 50-55 | Black Oxide | ✔ | ✔ |
Parts Specification
| A Diameter Nominal | A Diameter Actual | B Diameter Nominal | B Diameter Actual | C | D | G |
| 60mm | 2.3622 | 25mm | 0.9843 | 0.91 | 0.98 | 1.339 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
