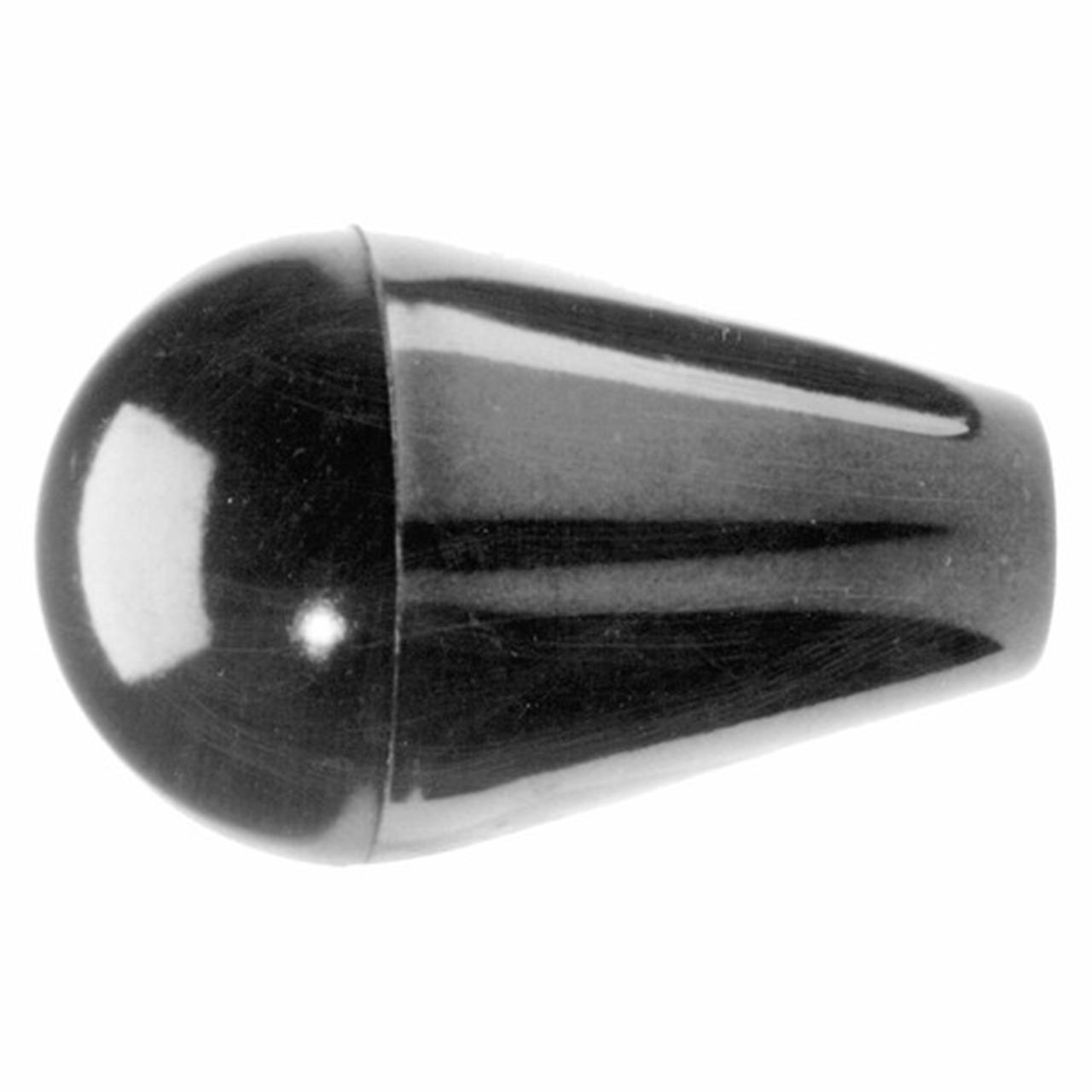

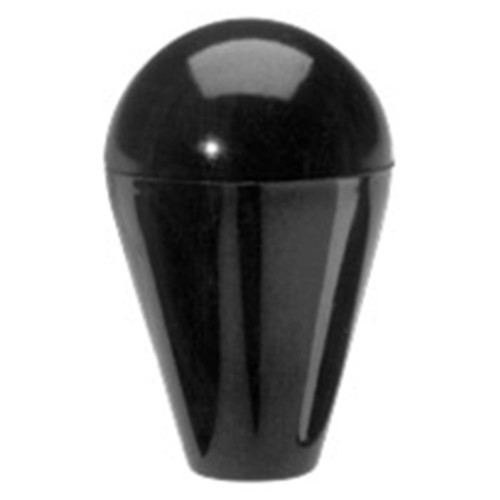

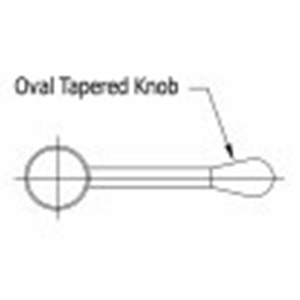

Attractive design suitable for many applications, including control levers and push/pull rods. The phenolic version shown here is our most popular, with a hard smooth shiny finish. Choice of four knob sizes, with tapped-hole sizes from #10-32 to 1/2-13 (M6 to M12 in metric). Molded-in brass insert provides superior thread strength. Non-standard thread sizes and molded-in studs are available in quantities of 500 and above. Made in USA.
3/8-161/2-13M10M12 1/4-205/16-18M8 1/4-205/16-183/8-16M6 #10-321/4-20M6
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals) | - | Molded-in Brass Insert | ✔ | ✔ |

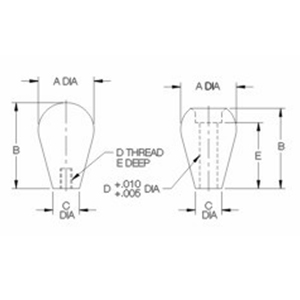

| Part Number | A DIA (mm) | B (mm) | C DIA (mm) | D THREAD | THREAD PITCH (mm) | E (mm) |
| CLM-26-PTK-PACKOF2 | 19 | 32 | 10 | M6 | 1 | 11 |
