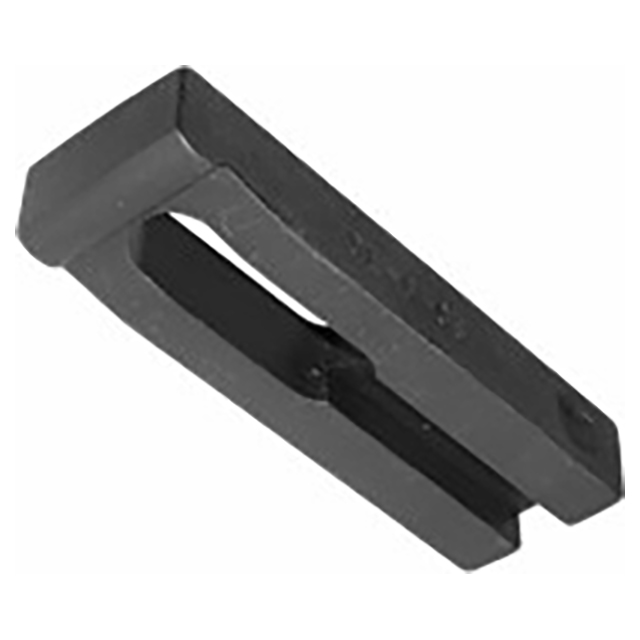

Carr Lane CLM-27-SHA-1 | M20 Thread x 2.5mm Thread Pitch Steel Black Oxide Coated Slotted-Heel Clamp Strap

Slotted-Heel Clamp Straps

Heavy-duty steel version of the Slotted-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a slot underneath to slide straight back for clear loading. An indentation at the rear of each side provides a secure finger grip for retracting the clamp.

Application Information

Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading.

Assembly with Spherical Nut & Washer (-1)

This clamp assembly includes a Slotted-Heel Clamp Strap plus the following items:

Spherical Nut & Washer

Clamping Stud

Clamp Spring

Flat Washer

Jam Nut

Clamp Rest

Material

Parts Specification
