Key Inserts-Solid, Steel
Solid Key Inserts are ideal for relocating a drilled or tapped hole. This threaded plug installs quickly, and the locking keys positively prevent the insert from rotating. Metric sizes are shown here, ranging from M8 to M30x2.Key Inserts are installed using standard drills and taps, but the required tap-drill size is slightly larger than normal for that OD thread size.
Application Information

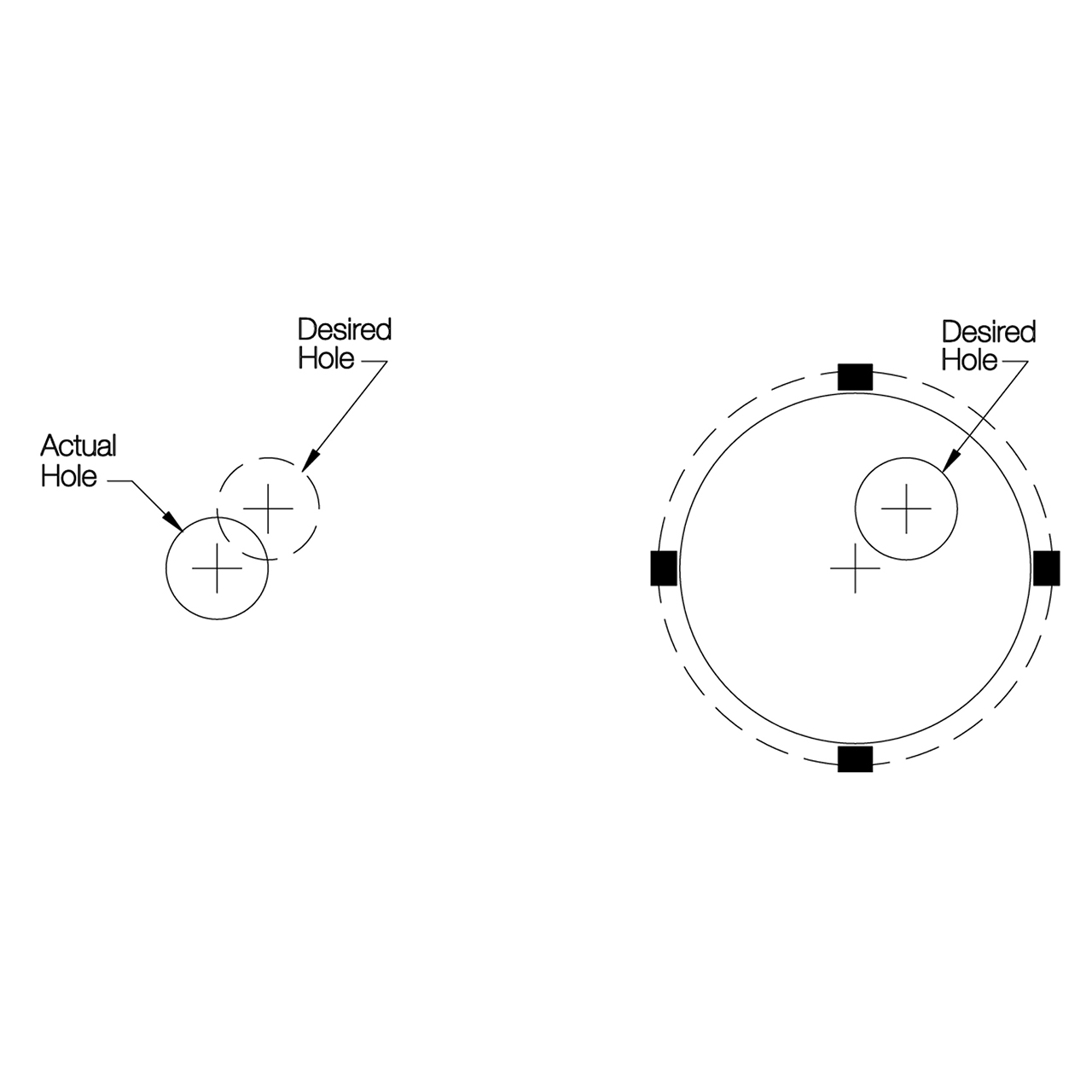

Before Repair (left). After Repair (right).
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | - | Black Oxide or Dry Lube | Yes | Yes |
| Keys | 302 Stainless Steel | - | - | Yes | Yes |
Parts Specification
| External Thread | External Thread Pitch (mm) | L Length (mm) | K Minimum (mm) | Shear Engagement Area (sq Mm) |
| M30x2 | 2mm | 30mm | 26mm | 1800 sqmm |
