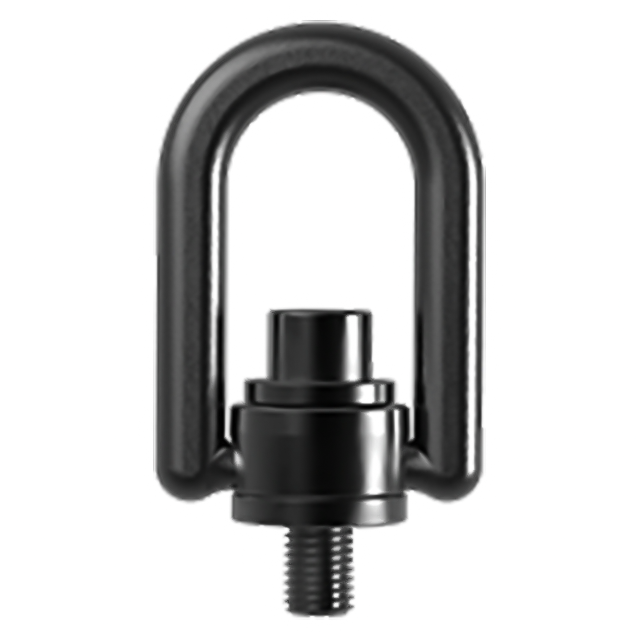

Heavy-Duty Swivel Hoist Rings
Feature a forged lifting ring and simpler construction for easy disassembly. Swivel Hoist Rings pivot 180° and swivel 360° simultaneously to allow lifting from any direction.
Application Information
Heavy-Duty Swivel Hoist Rings can be easily disassembled. One benefit of this is easier cleaning. Disassembly also allows adding a lifting hook, as shown in this example, for use when lifting with a sling.
Internal View
Installation
Fasten using the installation torque specified in the dimension table. Always install so that the hoist ring can pivot and swivel freely. Use the shortest bolt length only for steel plates, the other lengths for weaker materials and for through-hole mounting with a washer and nut.
Material
| Item | Material | Heat Treat | FINISH |
| Heavy-Duty Swivel Hoist Rings (Standard Ring) | 4140 Steel | Heat Treated | Black Oxide finish (Cadmium Plating available as a special) |
Parts Specification
| Load Rating (kg) | A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D (mm) | E Diameter (mm) | F (mm) | G (mm) | K (mm) | L (mm) | N Diameter (mm) | P (mm) | Installation Torque (nm) |
| 1900 | M16 | 2mm | 25mm | 38mm | 135mm | 19mm | 25.5mm | 89mm | 54mm | 121mm | 48mm | 4.4mm | 80 |
