Standard Ring

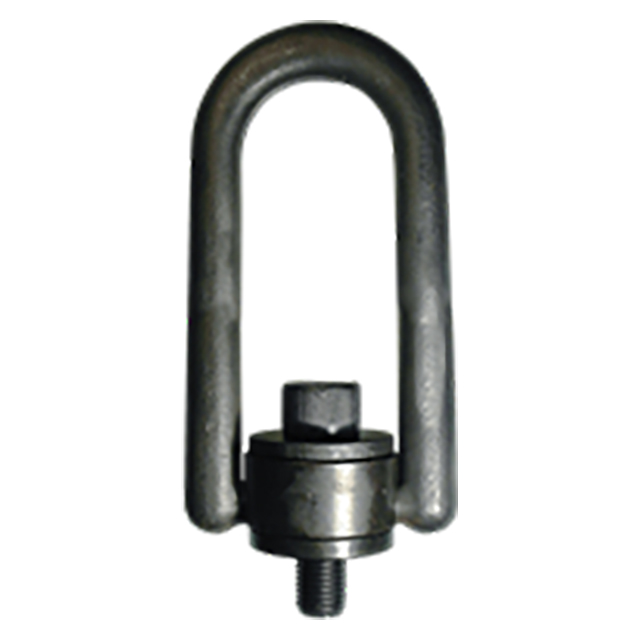

Long-ring version of our Heavy-Duty Swivel Hoist Rings, which feature a forged lifting ring and simpler construction for easy disassembly. The longer, forged-steel lifting ring provides extra reach and allows using larger lifting hooks. Swivel Hoist Rings pivot 180° and swivel 360° simultaneously to allow lifting from any direction. Made in USA.

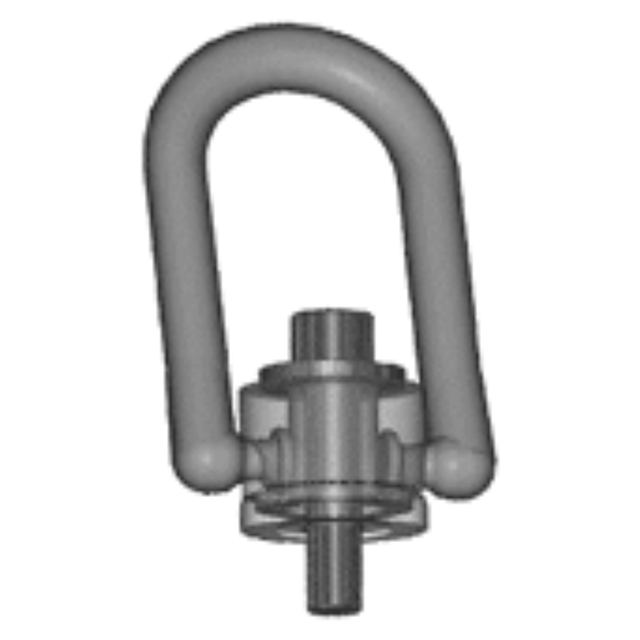

Internal View
Installation
Fasten using the installation torque specified in the dimension table. Always install so that the hoist ring can pivot and swivel freely. Some hoist rings are available with a choice of bolt lengths. Use the shortest bolt length only for steel plates, the other lengths for weaker materials and for through-hole mounting with a washer and nut.
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH |
| Heavy-Duty Swivel Hoist Rings (Long Ring) | 4140 Steel | Heat Treated | Black Oxide finish (Cadmium Plating available as a special) |

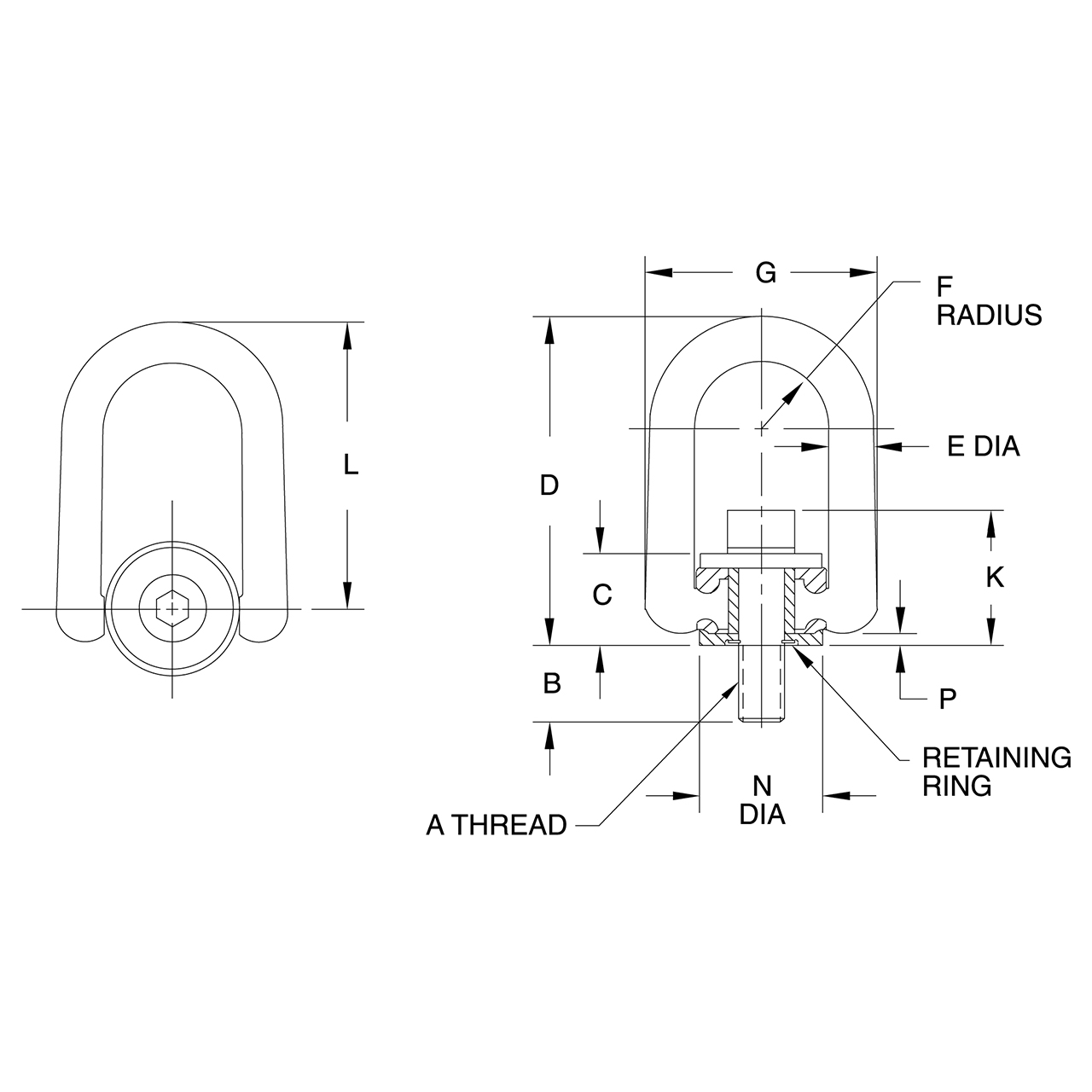

Parts Specification
| Load Rating (kg) | A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D (mm) | E Diameter (mm) | F (mm) | G (mm) | K (mm) | L (mm) | N Diameter (mm) | P (mm) | Installation Torque (nm) |
| 1050 kg | M12 | 1.75 mm | 25 mm | 38 mm | 175 mm | 19 mm | 25.5 mm | 89 mm | 51 mm | 160.5 mm | 48 mm | 4.4 mm | 37 Nm |
