High-strength Eye Bolt with a reamed bearing hole. Fully machined from solid barstock. Made in USA.

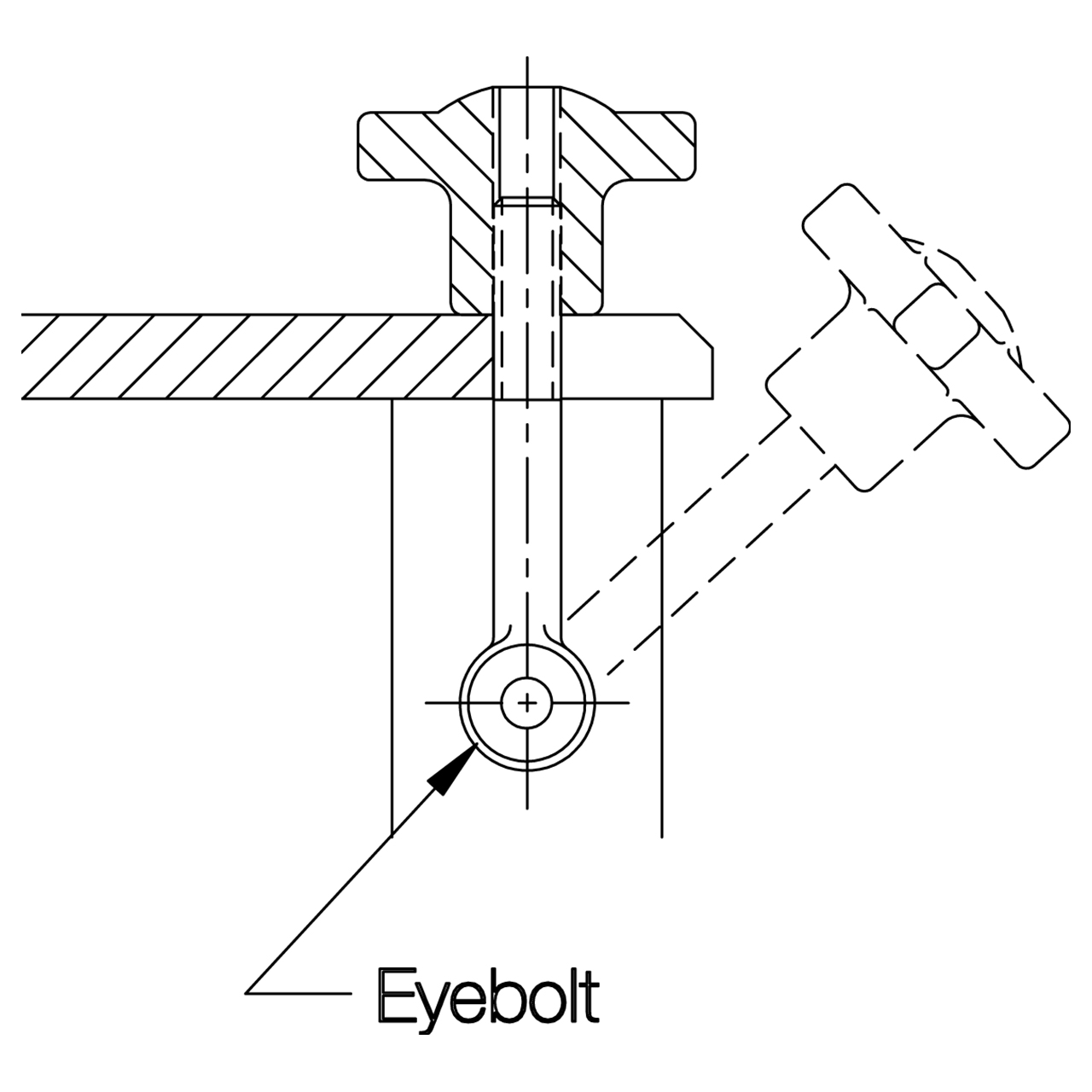

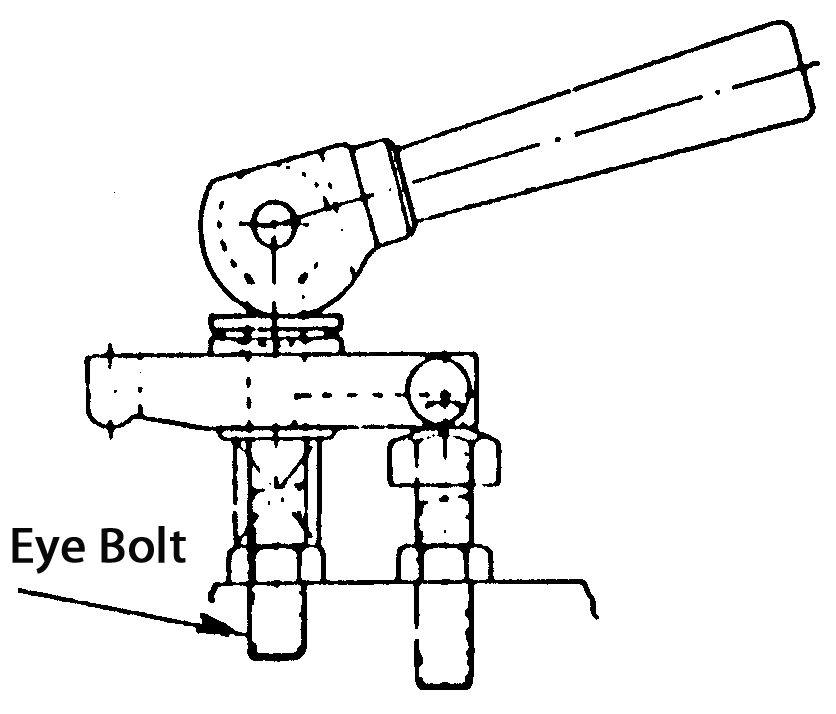

Application Information
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Eye Bolts | 1144 steel, 115,000 psi min tensile strength, 100,000 psi min yield strength | - | Black Oxide | ✔ | ✔ |
Parts Specification
| A Thread | Thread Pitch (mm) | D Dia (mm) +.05/-.00 | B (mm) | C (mm) | E (mm) | F (mm) +.00/-.13 |
| M10 | 1.5 mm | 10 mm | 100 mm | 50 mm | 20 mm | 10 mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

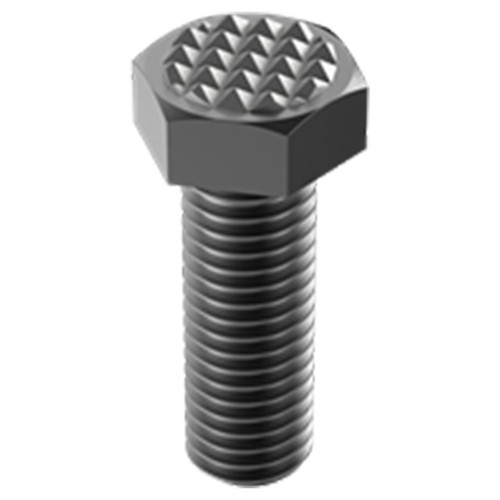

Related Products
Brand:
Carr Lane
Thread Size:
M10
Eye Inside Diameter (mm):
10.00mm
Eye Outside Diameter (mm):
20.00mm
Thread Length (mm):
50.00mm
Overall Length (mm):
100.00mm
Material:
Steel
interval quantity:
1
Ships:
From Manufacturer
