Carr Lane CLM-4-SCA | M10 Thread Size Slotted-Heel Clamp Strap

Slotted-Heel Clamp Straps

Heavy-duty steel version of the Slotted-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a slot underneath to slide straight back for clear loading. An indentation at the rear of each side provides a secure finger grip for retracting the clamp. Made in USA.

Application Information

Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading.

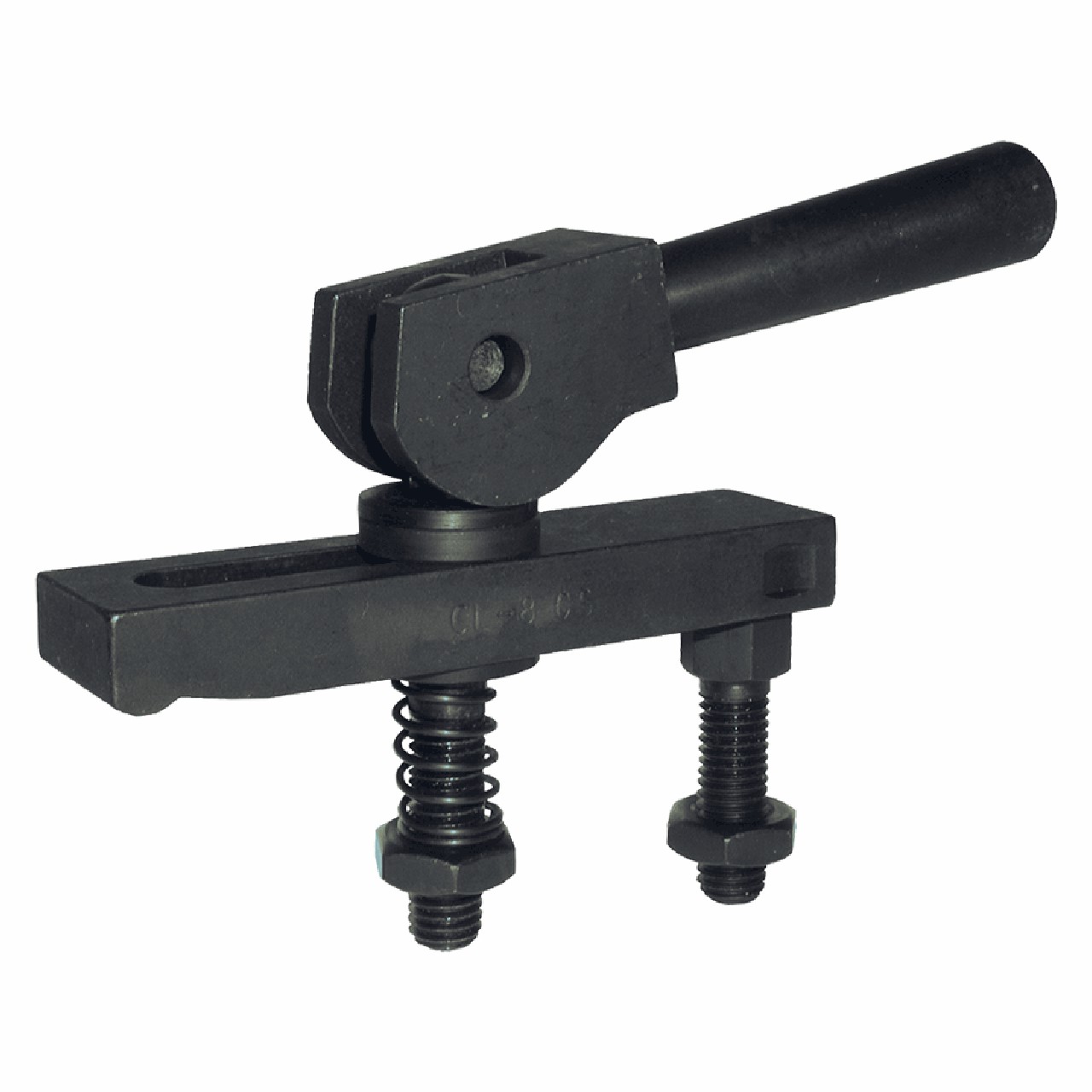

Assembly with Cam Handle & Spherical Washer

This clamp assembly includes a Slotted-Heel Clamp Strap plus the following items: Cam Handle, Spherical Washer, Eye Bolt, Clevis Pin, Clamp Spring, Flat Washer, Jam Nut, Clamp Rest

Material

Parts Specification
