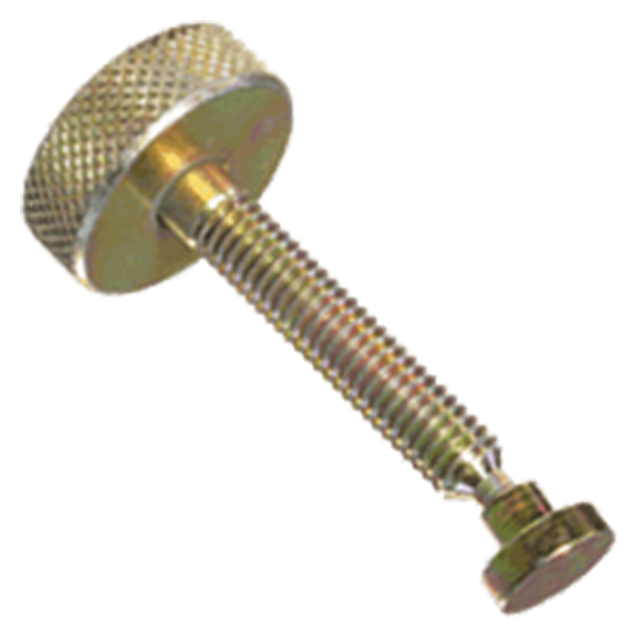

Carr Lane CLM-40-SHS-BO | M6 Thread x 1mm Pitch Swivel Head Screw

Swivel Head Screws

High-quality thumb screw that accepts a wide assortment of swivel feet. The swivel screws shown here include the Type B large foot, which is optionally available in Delrin. Knurled head provides a positive grip for finger tightening in light clamping applications. Made in USA.

Swivel Foot

Swivel Head Screws use the patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use. Delrin feet are optional for types A and B.

Material

Parts Specification
