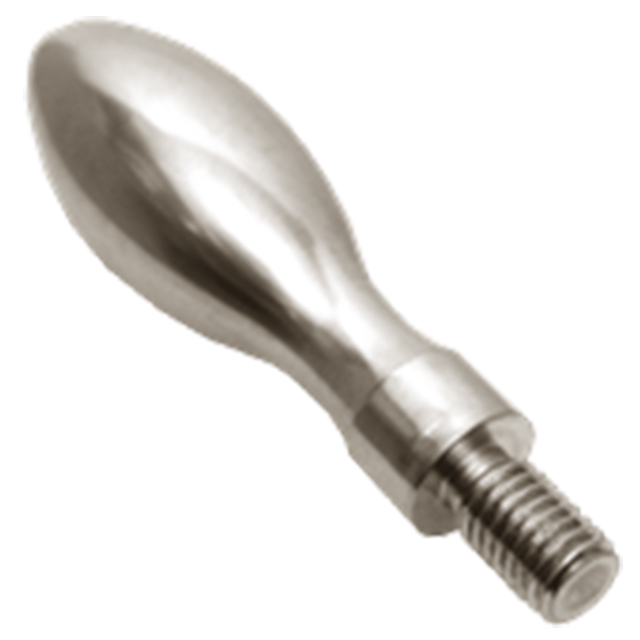

Solid Handles-Rounded Design, Threaded
Attractive rounded-design handle made of solid stainless steel, with a polished finish.
Application Information
Solid Handles can be used to make custom crank handles
Material
| Material | Heat Treat | Finish | RoHS |
| 300-Series Stainless Steel | Yes | Yes | Yes |
Parts Specification
| Handle Size | A (mm) | B (mm) | C Thread | Thread Pitch (mm) | D Diameter (mm) | E Diameter (mm) |
| Size 4 | 81mm | 17mm | M10 | 1.5mm | 25mm | 16mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
