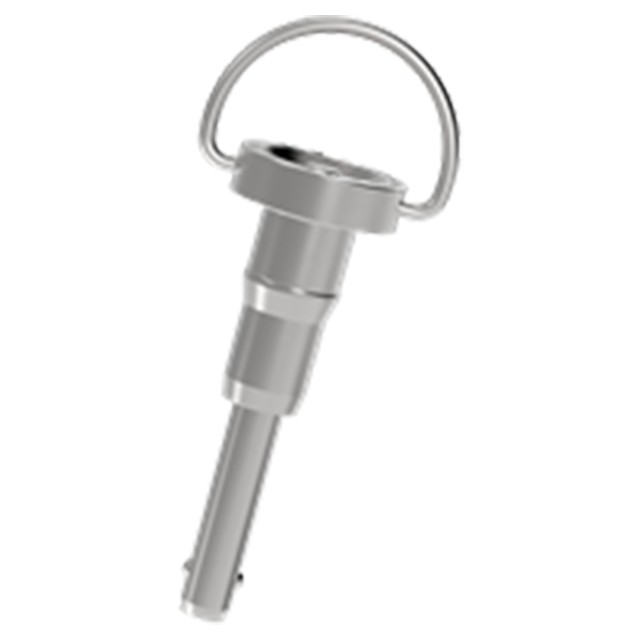

Carr Lane CLM-5-BLHR-25-S-C | 5mm Diameter x 25mm Grip Length Ring Handle Ball Lock Pin

Ring Handle

Heavy-Duty Ball Lock Pins are similar to the standard single-acting Ball Lock Pins, and have a larger, heavier handle for rough service. Handles are made of solid stainless steel for maximum impact strength, and are specially shaped to prevent accidentally pressing the release button. Ball Lock Pins are high-strength, quick-release alignment pins with a precision ground shank. They are positive locking until released by pushing the button, which moves the center spindle forward to allow the balls to retract. Made in USA.

Technical Information

Ball Lock Pins are positive locking until released by pushing the button, which moves the center spindle forward to allow the balls to retract.

Optional Cable

To order pins with a standard cable assembly attached (Cable Assembly CL-82-KA-12.0-#2 cable size, 12" long, with a terminal at the free end for a #10 or M5 attachment screw), add "-C" to the part number. For an optional 10" nylon lanyard, add "-NL" to the part number.

Material

Parts Specification
