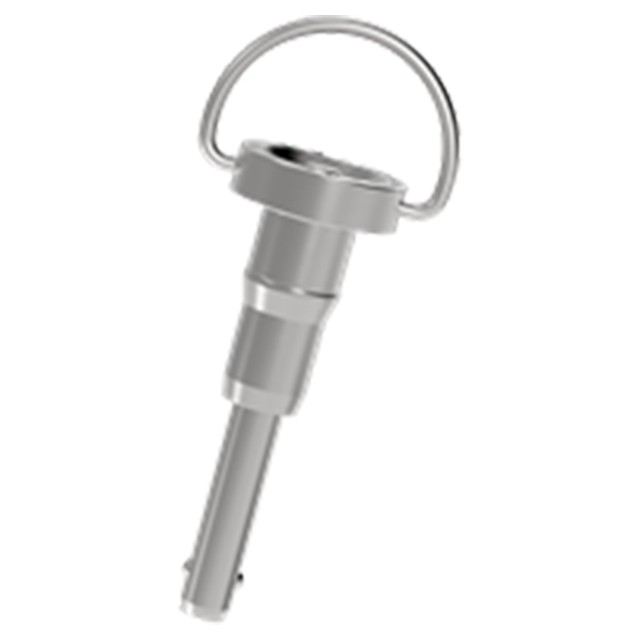

Carr Lane CLM-5-BLHR-40-S-C | 5mm Diameter x 40mm Grip Length Ring Handle Ball Lock Pin

$67.02
Brand:
Carr Lane
Diameter (mm):
5.00mm
Grip Length (mm):
40.00mm
Grip Length (Decimal Inch):
1.5748"
Grip Length (Inch):
1-37/64"
Diameter (Decimal Inch):
0.1969"
Diameter (Inch):
13/64"
SKU:
50009674
Weight:
0.14 LBS
Shipping:
Calculated at Checkout

Ring Handle

Heavy-Duty Ball Lock Pins are similar to the standard single-acting Ball Lock Pins, and have a larger, heavier handle for rough service. Handles are made of solid stainless steel for maximum impact strength, and are specially shaped to prevent accidentally pressing the release button. Ball Lock Pins are high-strength, quick-release alignment pins with a precision ground shank. They are positive locking until released by pushing the button, which moves the center spindle forward to allow the balls to retract. Made in USA.

Technical Information

Ball Lock Pins are positive locking until released by pushing the button, which moves the center spindle forward to allow the balls to retract.

Optional Cable

To order pins with a standard cable assembly attached (Cable Assembly CL-82-KA-12.0-#2 cable size, 12" long, with a terminal at the free end for a #10 or M5 attachment screw), add "-C" to the part number. For an optional 10" nylon lanyard, add "-NL" to the part number.

Material

ItemMaterialHeat TreatFinish
Shank17-4PH Stainless SteelRc 40 minN/A
Spindle17-4PH Stainless Steel-N/A
Handle300-Series Stainless Steel-N/A
R-Handle Ring302 Stainless Steel-N/A
Head and Button303 Stainless Steel-N/A
Collar300-Series Stainless Steel-N/A
Spring and Ring17-7PH/302 Stainless Steel-N/A
Balls440C Stainless Steel-N/A

Parts Specification

A Diameter Nominal (mm)A Diameter Actual (mm)Grip Length (mm)B (mm)C (mm)D Diameter (mm)E (mm)F (mm)G Diameter (mm)P Diameter (mm)S (mm)V (mm)
5mm4.96/4.92mm40mm5.38mm6.22mm6.5mm32mm18mm9.5mm27mm39.5mm54mm
