Polyurethane cushions are tougher and slightly harder than standard neoprene cushions, ideal when greater clamping force is required while still providing scratch-free clamping and some compensation for part-size variation. Molded-in stainless steel insert provides superior thread strength. Ideal for making custom-length Flat Cushion Spindles by inserting a threaded stud (steel or stainless steel). Studs can be permanently secured with thread-locking adhesive if desired (an adhesive such as Loctite 263 is suitable for most applications). Available with tapped-hole sizes from #10-32 to 3/8-16 (M5 to M10 in metric).

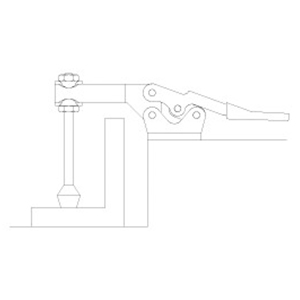

Polyurethane Flat Cushions are ideal for making custom-length clamping spindles.
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Polyurethane | - | durometer hardness 85 Shore A, operating temperature range -65ºF to 200ºF, with molded-in 300-series stainless steel insert | ✔ | ✔ |

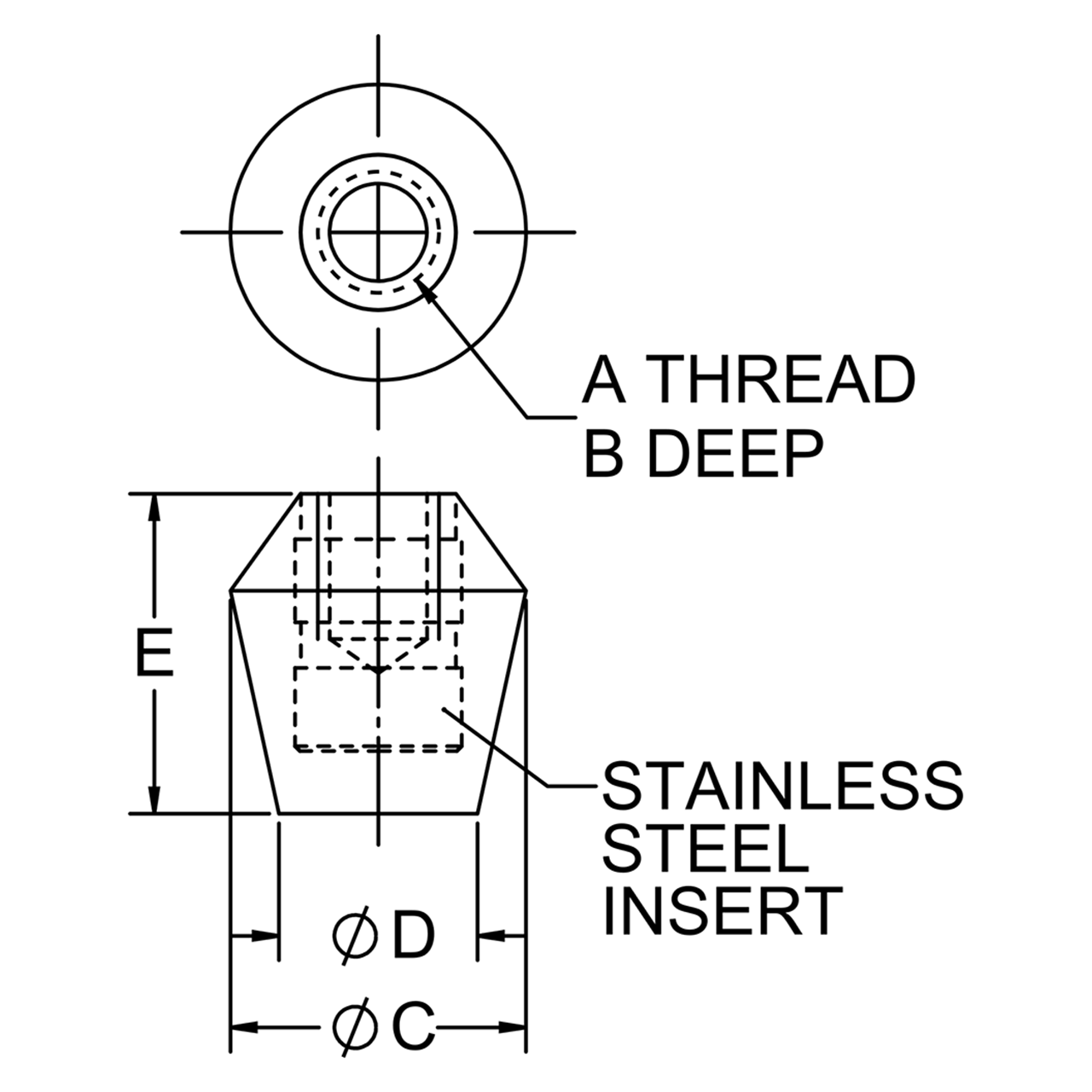

| Part Number | A THREAD | THREAD PITCH (mm) | B (mm) | C DIA (mm) | D DIA (mm) | E (mm) |
| CLM-5-FCP-PACKOF2 | M5 | .8 | 5 | 16 | 10.5 | 16 |
