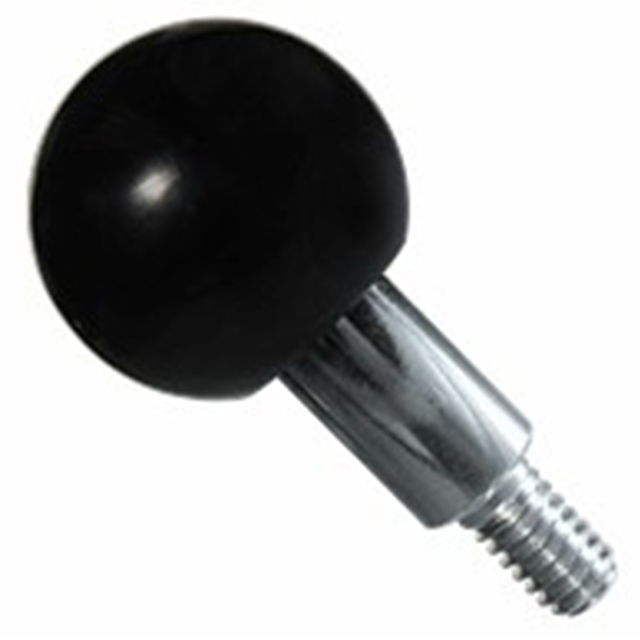

Revolving Ball Handle
Revolving handle with a ball knob made of phenolic plastic and a threaded steel spindle. This version is especially useful for hand wheels or cranks mounted horizontally with the handle used as a hand rest. Revolving Ball Handles have an internal bearing that allows the handle to remain fixed in your hand, for firm gripping.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Ball Knob | Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300°F, resistant to oils and most common chemicals) | Yes | Yes | Yes | Yes |
| Threaded Spindle | Mild Steel | Yes | zinc plated clear chromate | Yes | Yes |
Parts Specification
| Handle Size | A (mm) | B (mm) | C Thread | Thread Pitch (mm) | D Diameter (mm) | E Diameter (mm) | F (mm) | G (mm) |
| Size 5 | 78mm | 21mm | M12 | 1.75mm | 50mm | 20mm | 6mm | 31mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
