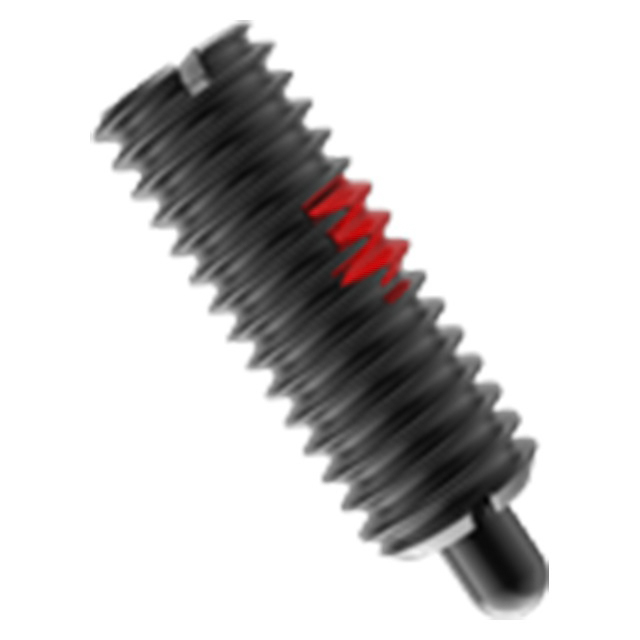

Short Spring Plungers with Extended Travel have the body length of a Short Spring Plunger while providing the longer stroke of a standard Spring Plunger. The version has a steel body and a hardened steel plunger nose. Made in USA.
Install and/or adjust from either end. When using the slot at the plunger end to install, use a Plunger Wrench instead of a screwdriver to avoid over-compressing the spring. A thread-locking element holds the unit securely in place after installation.
Nose Extended
Nose Retracted
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | - | Black Oxide | Yes | Yes |
| Plunger Nose | Carburized-Hardened | - | Black Oxide | Yes | Yes |
| Spring | Music Wire | - | - | Yes | Yes |
| A Thread | Thread Pitch (mm) | Initial End Force (n) | Final End Force (n) | B (mm) | C (mm) | D Dimeter (mm) |
| M5 | 0.8 mm | 5.5 N | 19 N | 12 mm | 3.2 mm | 2.36 mm |
