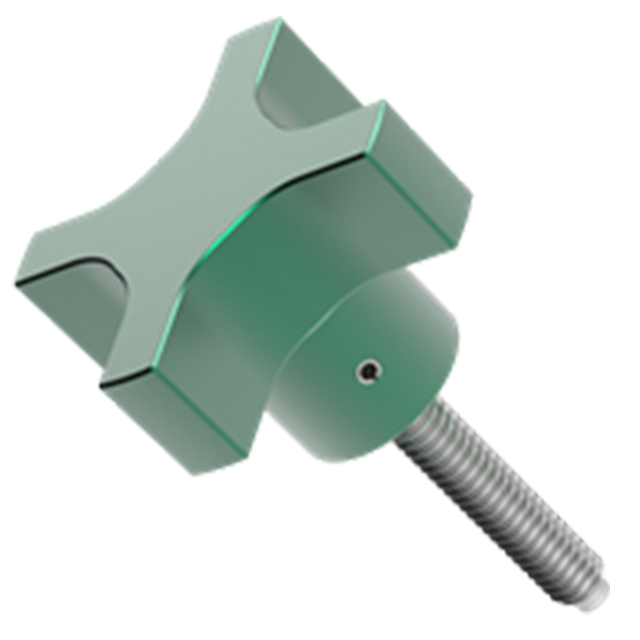

Carr Lane CLM-5A-HKE4T | M10x1.5 Thread x 1.5mm Pitch Extruded Hand Knob Assembly

Description

The Carr Lane CLM-5A-HKE4T M10 Extruded Hand Knob Assembly is made for fast, controlled manual tightening in fixture clamping, machine adjustment, and industrial tooling setups. Built as a 1.5 mm Pitch Hand Knob for Precise Adjustment, it offers smooth threaded engagement and accurate positioning control in repeat setup applications. Its M10x1.5 thread profile provides dependable compatibility with standard metric fixture plates, machine components, and tooling assemblies. The Four Prong Grip Knob for Quick Tightening model improves hand leverage, allowing fast torque application without external tools. As an Integral Screw Hand Knob for Secure Holding, it combines the knob and fastening screw into one durable assembly for improved convenience and reduced part count. The M10 Threaded Hand Knob for Fixture Clamping is especially useful for jigs, locating stops, guards, and adjustable machine elements. Its 51 mm outside diameter gives operators excellent grip surface for repetitive tightening cycles. The 35 mm knob height supports comfortable handling and consistent manual force application. An integral steel clamping screw knob construction provides durability and wear resistance in demanding shop environments. The 25 mm threaded length offers strong engagement depth for secure fastening in tooling plates and brackets. This manual tightening knob assembly is widely used in CNC fixtures, assembly stations, and maintenance setups requiring frequent adjustment. The 6.9 mm and 21 mm internal dimension features support balanced structure and stable rotational feel. Shops value its ergonomic design, reliable clamping force, and easy operator handling. It is an ideal choice where fast manual adjustments and repeatable holding are required. The Carr Lane CLM-5A-HKE4T is a dependable solution for secure, tool-free industrial clamping and positioning.

Product Features and Benefits

M10x1.5 Precision Thread

The M10 Extruded Hand Knob Assembly ensures reliable fastening in standard metric fixture and tooling systems.

1.5 mm Smooth Pitch Control

This 1.5 mm Pitch Hand Knob for Precise Adjustment supports fine, repeatable manual positioning.

Four Prong Grip Design

The Four Prong Grip Knob for Quick Tightening improves leverage and speeds manual torque application.

Integral Screw Construction

This Integral Screw Hand Knob for Secure Holding reduces assembly parts and improves fastening reliability.

Durable Steel Clamping Screw

The integral steel clamping screw knob construction provides long-term wear resistance in shop environments.

Ergonomic 51 mm Diameter

The larger grip diameter supports operator comfort and consistent tightening during repetitive use.

Frequently Asked Questions

What thread size does this hand knob use?

This M10 Threaded Hand Knob for Fixture Clamping uses an M10x1.5 metric thread.

What makes the four-prong grip useful?

The Four Prong Grip Knob for Quick Tightening improves leverage and allows faster manual tightening.

Is the screw integrated into the knob?

Yes, it is an Integral Screw Hand Knob for Secure Holding with built-in fastening convenience.

Where is this knob commonly used?

This manual tightening knob assembly is ideal for fixtures, machine guards, jigs, and adjustable stops.

Does it support precise adjustments?

Yes, the 1.5 mm Pitch Hand Knob for Precise Adjustment enables smooth, repeatable positioning control.
