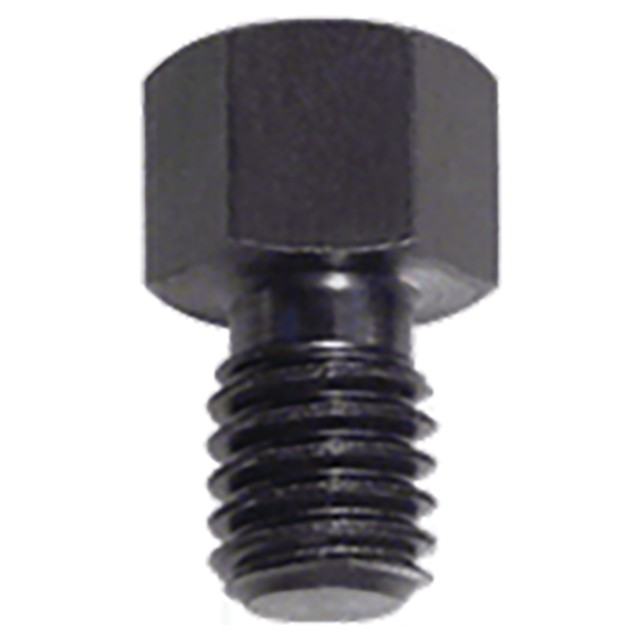

Screw Rest Buttons
Threaded rest button with a hex head machined .005 to .010" over nominal height for finish grinding after installation. Screw Rest Buttons are useful as supports and jig feet. Made in USA.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | carburized-hardened .015 to .020" deep | Black Oxide | Yes | Yes |
Parts Specification
| A (mm) | B (mm) | C (mm) | D Thread | Thread Pitch (mm) |
| 10mm | 10mm | 10mm | M6 | 1mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Pitch (Inch):
3/64"
Pitch (Decimal Inch):
0.0394"
Pitch (mm):
1.00mm
Thread:
M6
