Carr Lane CLM-8-SLFN | M8 Thread x 1.25mm Pitch Stud leveling Feet

Stud leveling Feet

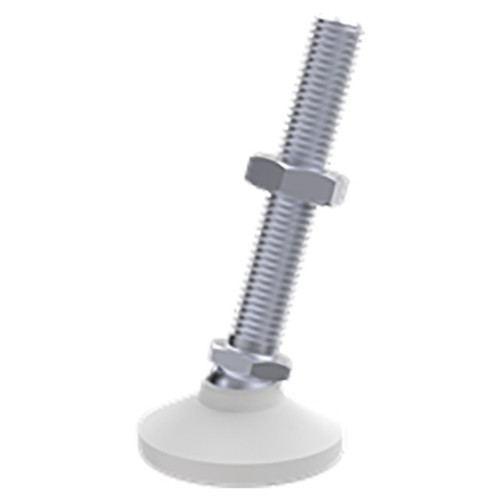

High-quality, heavy-duty leveling foot with a large-diameter pad and integral stud. Stud and swivel ball are one solid piece. Large swivel ball provides a 20° total swivel angle. The Delrin pad prevents marring, but has a lower load capacity than a steel pad. Made in USA.

Application Information

A Stud Leveling Foot can be used as a clamp rest for a Tapped-Heel Clamp Strap

Design Considerations & Safety Precautions

Rated load capacity represents safe static load with the standard stud at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Load capacity will drop significantly with longer studs.

Material

Parts Specification
