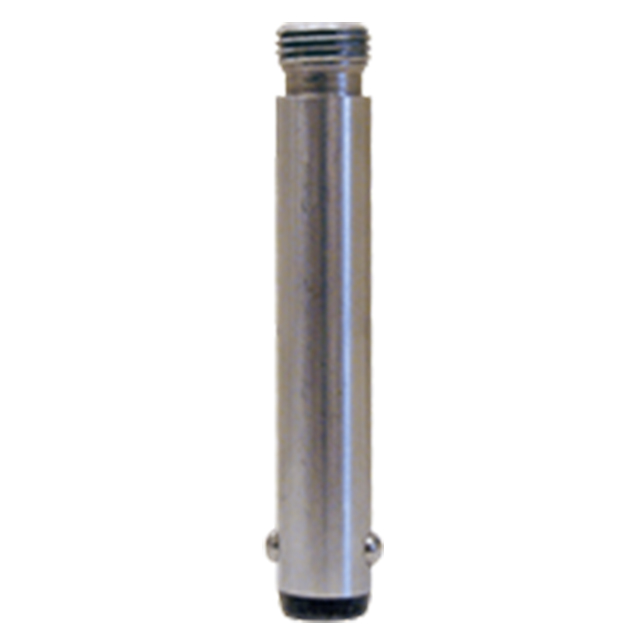

Threaded Detent Pins
It have one end threaded for a knob handle. These quick-release alignment pins have a solid shank and spring-loaded locking balls. Locking balls hold the pin in place by spring force (not positive locking like a Ball Lock Pin). Simply push the pin to insert, and pull to remove. Made in USA.
Application Information
The pin's threaded end accepts virtually any type of knob handle.
Material
Shank > 300-series stainless. Spring > 17-7PH/302 stainless. Balls > 440C stainless. DFARS and RoHS compliant.
Parts Specification
| A Diameter Nominal (mm) | A Diameter Actual (mm) | Grip Length (mm) | B (mm) | C (mm) | D Thread (mm) | Thread Pitch (mm) | F (mm) |
| 8mm | 7.95mm | 30mm | 9.22mm | 9.11mm | M6mm | 1mm | 10mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Grip Length (mm):
30.00mm
Grip Length (Decimal Inch):
1.1811"
Grip Length (Inch):
1-3/16"
Diameter (Inch):
5/16"
Diameter (Decimal Inch):
0.3150"
Diameter (mm):
8.00mm
