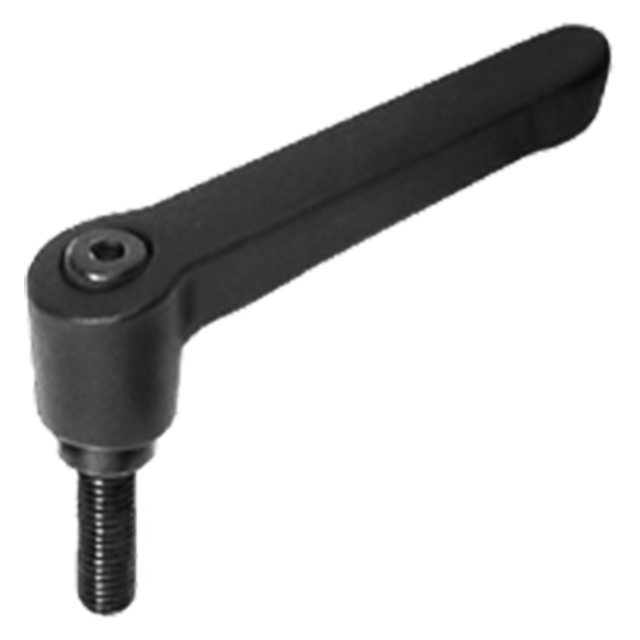

Adjustable clamping handle that can be reset to any angle. Ideal for clamping in a confined space, or when a specific handle position is desired. Rugged spring-loaded spline mechanism. These handles are incredibly strong, featuring a unique stainless steel spline inlay molded into the plastic handle. This provides positive metal-to-metal mating with the serrated body, for high clamping torque.
Lift handle to disengage serrations, rotate to desired position, then release handle to automatically re-engage spline.
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Handle | Black fiber-reinforced thermoplastic | - | 300-series stainless insert | Yes | Yes |
| Body,Screw & Spring | Mild Steel | - | Black Oxide | Yes | Yes |
| Size | E Thread | Thread Pitch (mm) | F (mm) |
| 2 | M8 | 1.25mm | 40mm |
