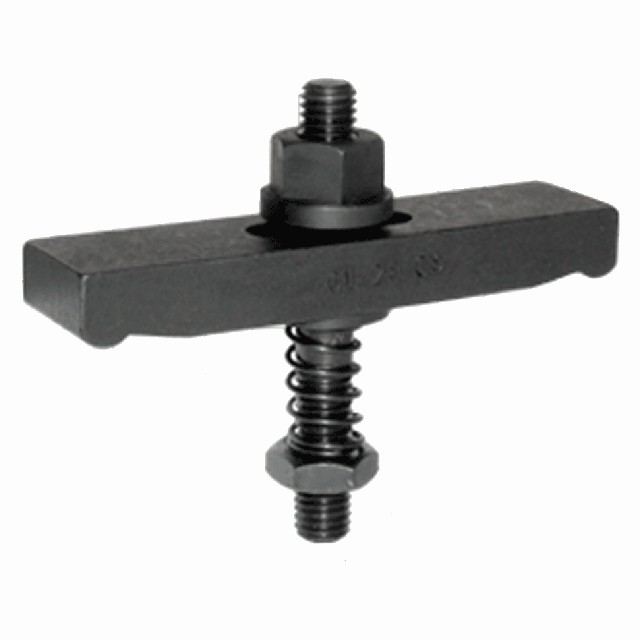

Carr Lane CLM-842-GCSA-2 | M12 Thread x 1.75mm Pitch Double-End Gooseneck Clamp Straps

$50.31
Brand:
Carr Lane
Pitch (Inch):
1/16"
Pitch (Decimal Inch):
0.0689"
Pitch (mm):
1.75mm
Thread:
M12
SKU:
50022575
UPC:
Weight:
0.13 LBS
Shipping:
Calculated at Checkout

Double-End Gooseneck Clamp Strap Assembly

Gooseneck version of Double-End Clamp Straps. This design recesses the clamping nut to provide a low overall profile. Double-End Clamp Straps have two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90º for clear loading. Made in USA.

Application Information

Double-End Clamp Straps have two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading.

Assembly with Flange Nut (-2)

This clamp assembly includes a Double-End Gooseneck Clamp Strap plus the following Items:

Flange Nut

Clamping Stud

Clamp Spring

Flat Washer

Jam Nut

Material

Material Heat Treat Finish RoHS RoHS
Alloy Steel - Black Oxide ✔ ✔

Parts Specification

A ThreadThread Pitch (mm)B (mm)C (mm)D (mm)
M121.75mm20mm40mm100mm

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Carr Lane
Pitch (Inch):
1/16"
Pitch (Decimal Inch):
0.0689"
Pitch (mm):
1.75mm
Thread:
M12
