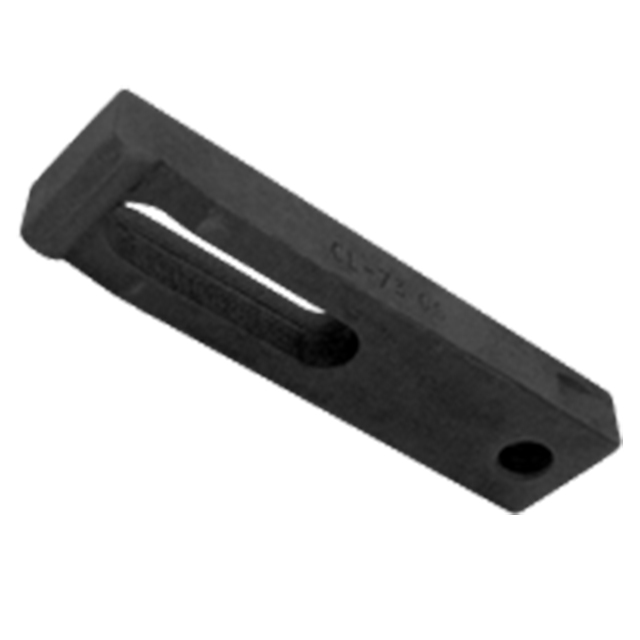

Carr Lane CLM-92-CS | M20 Size x 2.5mm Pitch Tapped-Heel Clamp Strap

Tapped-Heel Clamp Straps

Heavy-duty steel version of the Tapped-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut. An indentation at the rear of each side provides a secure finger grip for retracting the clamp.

Application Information

Tapped-Heel Clamp Straps have a tapped hole that accepts either a clamping screw.

Material

Parts Specification
