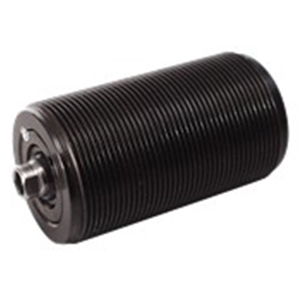

Carr Lane CLR-1311-225 | M40x1.5 Thread x 20.00mm Stroke Threaded Universal Cylinder

Product Information

7250 psi max Single and Double Acting All-threaded cylinders are designed for installation through fixture walls. They are available with the same piston diameters and strokes as our popular Block Cylinders. External thread allows fine adjustment after installation. Compact design with many applications. Excellent for punching, pressing, and assembly operations, with high forces available. Double-acting version can also be used for pulling, by reversing the A and B ports. Available in seven sizes, with a choice of stroke lengths up to 100mm — see Dimensions page for part numbers. Push force at 7250 psi:            2250 lbs     M40x1.5            2250 lbs     M45x1.5            5500 lbs     M48x1.5            9000 lbs     M55x1.5          14100 lbs     M65x1.5          22100 lbs     M75x1.5          35000 lbs     M90x2

Clamping Action

Applying fluid pressure to the A port advances the plunger. Spring return (single acting) or fluid return (double acting).

Mounting & Fluid Supply

Two methods: 1) Mount through a tapped hole in the fixture plate, securing with a lock ring; 2) Mount through a bored hole in the fixture plate, securing with two lock rings.1/4" BSPP port (two for double-acting clamps). Do not use NPT fittings.

Optional Viton Seals

For high-temperature applications (212 Degree to 300 Degree F), we offer Viton seals in all sizes. Viton seals have a slightly shorter service life. Please contact factory for more information.

Material

Parts Specification
