Carr Lane CLR-1458-001 | M12x1.5 Thread x 28.00mm overall Height x 5.00mm Stroke x 560 lbs Clamping Force Threaded-Body Cylinder-Mini

Product Information

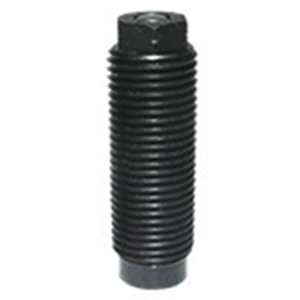

7250 psi max Single Acting Tiny push clamps with a solid plunger. Threaded-body clamps provide considerable force in a small size. These small clamps can be placed very close together, especially when manifold mounted (.60" minimum spacing). Clamps can be screwed all the way down to their hex flats, or installed at partial depth. Available in one body diameter, with 1/2-20 (inch) or M12x1.5 (metric) threads, with a choice of two lengths for 5mm or 10mm stroke. Optional extended piston rod provides extra reach. Clamping force at 7250 psi:          560 Lbs

Clamping Action

Applying fluid pressure advances the plunger. Spring return.

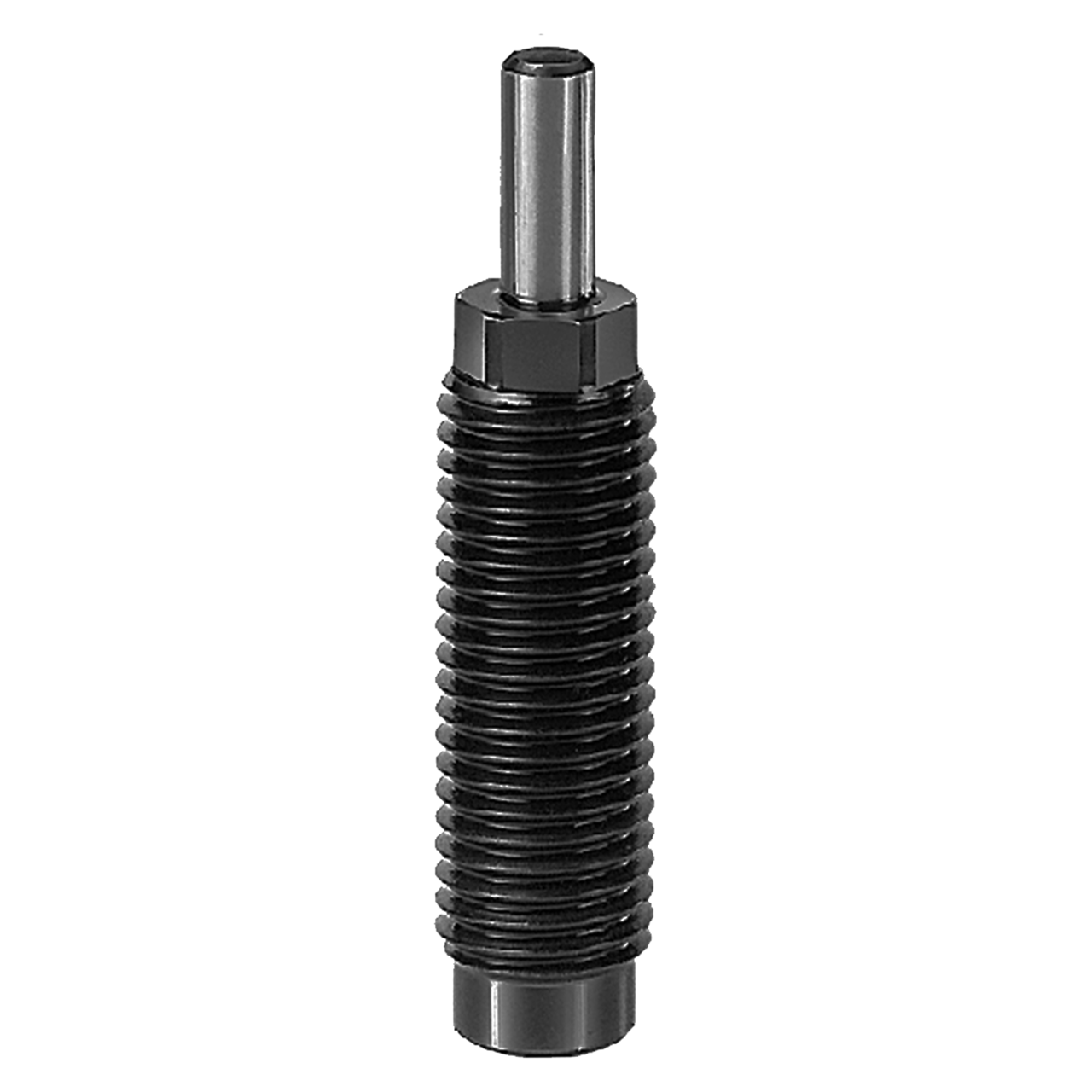

Optional Extended Piston Rod

Design Considerations

Threaded-Body Push Clamps have a positive stroke stop in the extended position, but not in the retracted position. Do not place a load on the plunger while it is retracted.

Mounting & Fluid Supply

Several possible mounting methods: 1) install clamp directly into a flat-bottom tapped hole in the fixture – see drawings for hole-preparation instructions; 2) install clamp into a Mounting Block; 3) install clamp into a Feeder Cap and mount through a fixture wall (secure with a Jam Nut); 4) install in a plain tapped hole and secure with a Sealing Nut – see drawings for hole-preparation instructions. In the first three cases, hydraulic sealing is accomplished by a Sealing Washer (furnished) placed directly underneath the clamp. Tighten clamp to recommended seating torque. Fluid passages must be drilled as shown in the drawings. Do not use NPT fittings.

Material

Parts Specification
