Product Information

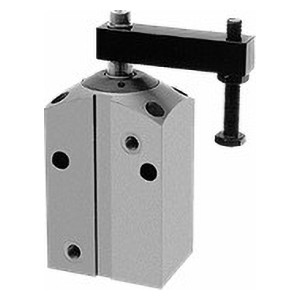

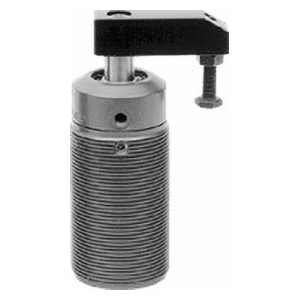

100 psi max (Air)Double Acting Air-Powered Swing Clamps are a pneumatic version of our popular hydraulic Swing Clamps, for applications requiring light clamping force. The clamping arm swings clear for easy loading using a sturdy helical-cam mechanism operated by a double-acting air cylinder. Available in the three types shown below: All Threaded Block Type Top Flange Contact Customer Service Contact Customer Service

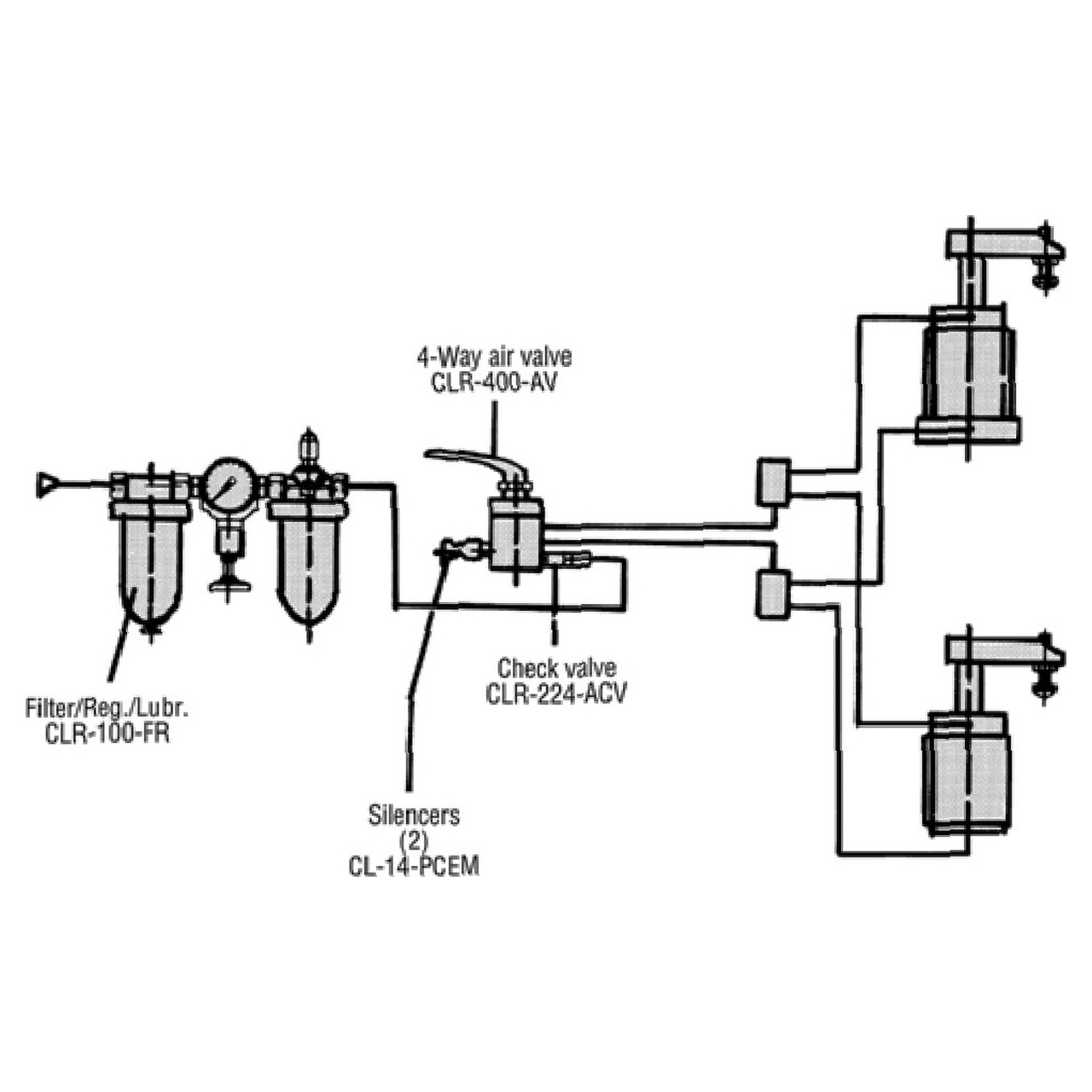

Application Information
Parts Specification
| Part Number | MAXIMUM CLAMPING FORCE (lbs) | CLAMP SIZE | SWING | J BODY DIA (mm) | CLAMPING STROKE (mm) | TOTAL STROKE (mm) | F & G PORTS |
| CLR-1875-105 | 124 | 5 Series | 90 Degree cw | 60 | 15 | 32 | 1/8 BSPP |
