Carr Lane CLR-1875-206B | 5 Series 15.00mm Clamping Stroke x 124 lbs Clamping Force Air-Powered Swing Clamp

Product Information

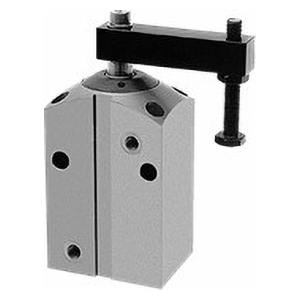

100 psi max (Air)Double Acting Air-operated version of our popular hydraulic Swing Clamps, for applications requiring light clamping force. Arm swings clear for easy loading, with a sturdy helical-cam mechanism. Arm can be mounted to start its 90 Degree swing from any position within 360 Degree. A standard magnetic piston allows monitoring of clamping and unclamping position. The block-type version shown here provides many mounting options, including side mounting, using either standard fittings or manifold mounting. Available in five sizes, each with a choice of clockwise or counterclockwise swing. Clamping force at 100 psi with standard arm:            31 lbs     (3 Series)             83 lbs     (4 Series)          126 lbs     (5 Series)          200 lbs     (6 Series)          310 lbs     (7 Series)

Application Information

Clamping Action

Swing Clamps are pull-type cylinders where part of the total stroke is used to swing the piston, and the remaining stroke is available as the clamping range. Applying air pressure to the A (clamping) port swings arm 90 Degree over workpiece then clamps down. Switching pressure to the B (unclamping) port positively lifts arm then swings it back 90 Degree for loading/unloading.

Design Considerations

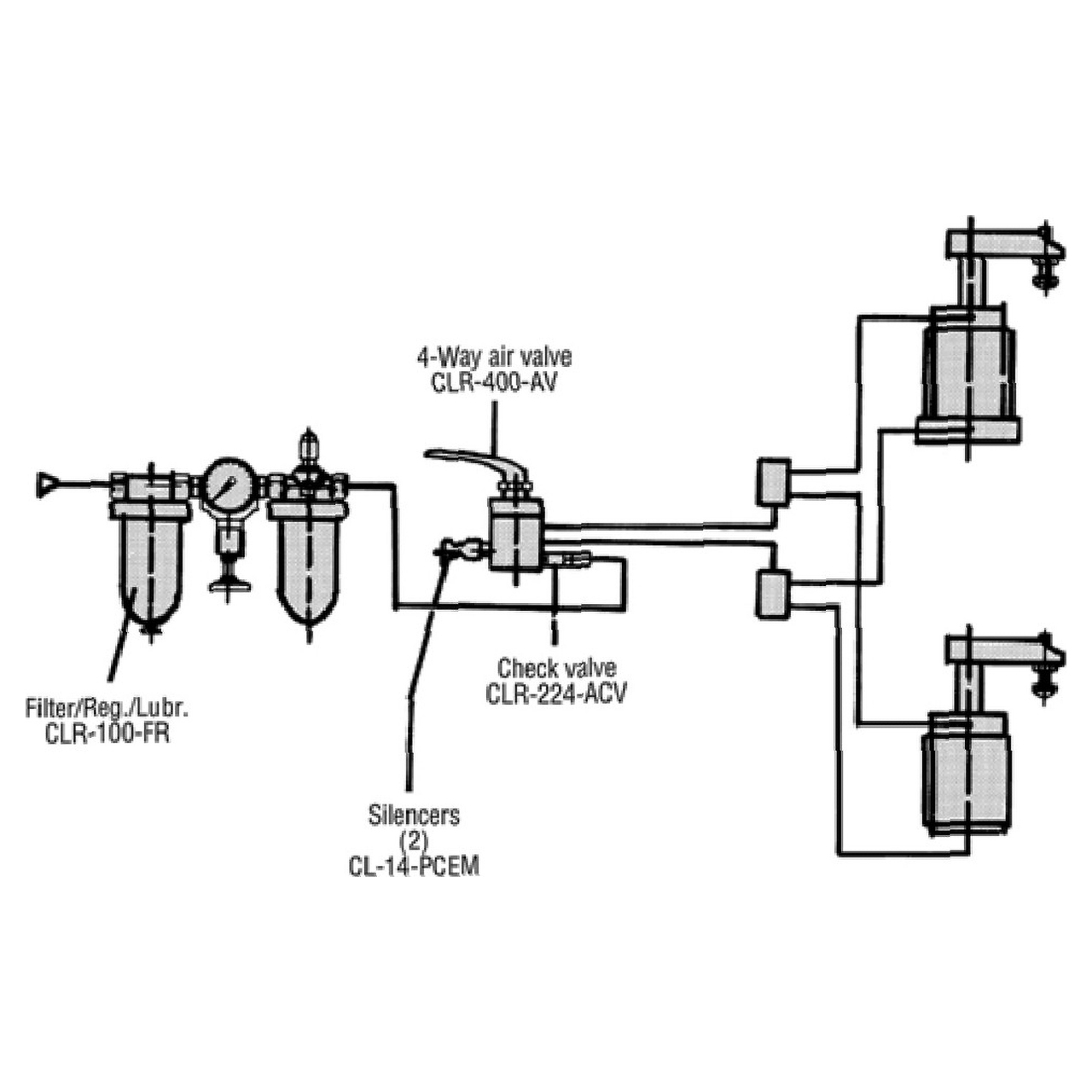

See Application Information for a typical air-connection example. Use an Air Check Valve between the air supply and the Air Clamping Valve to protect against pressure loss if the air supply fails. Always use a Filter/Regulator/Lubricator. For extended clamp life, install an Air Extractor Dryer before the Filter/Regulator/Lubricator. Swing motion must not be restricted in any way. Be sure to adjust the contact bolt so that the clamp completes its full swing stroke and starts its clamping stroke before contacting the workpiece. Do not use with hydraulic fluid.

Mounting

For bottom mounting, insert four socket-head cap screws from the top end, through the four counterbored holes parallel to the plunger (these holes are also tapped at the bottom to allow fastening with socket-head cap screws from below). For side mounting, insert two socket-head cap screws through the two broad-side holes perpendicular to the plunger.

Clamping Arm

Order clamping arm separately. Standard clamping arm has a maximum allowable operating pressure of 100 psi. Longer clamping arms will reduce allowable operating pressure, inversely proportional to arm length.

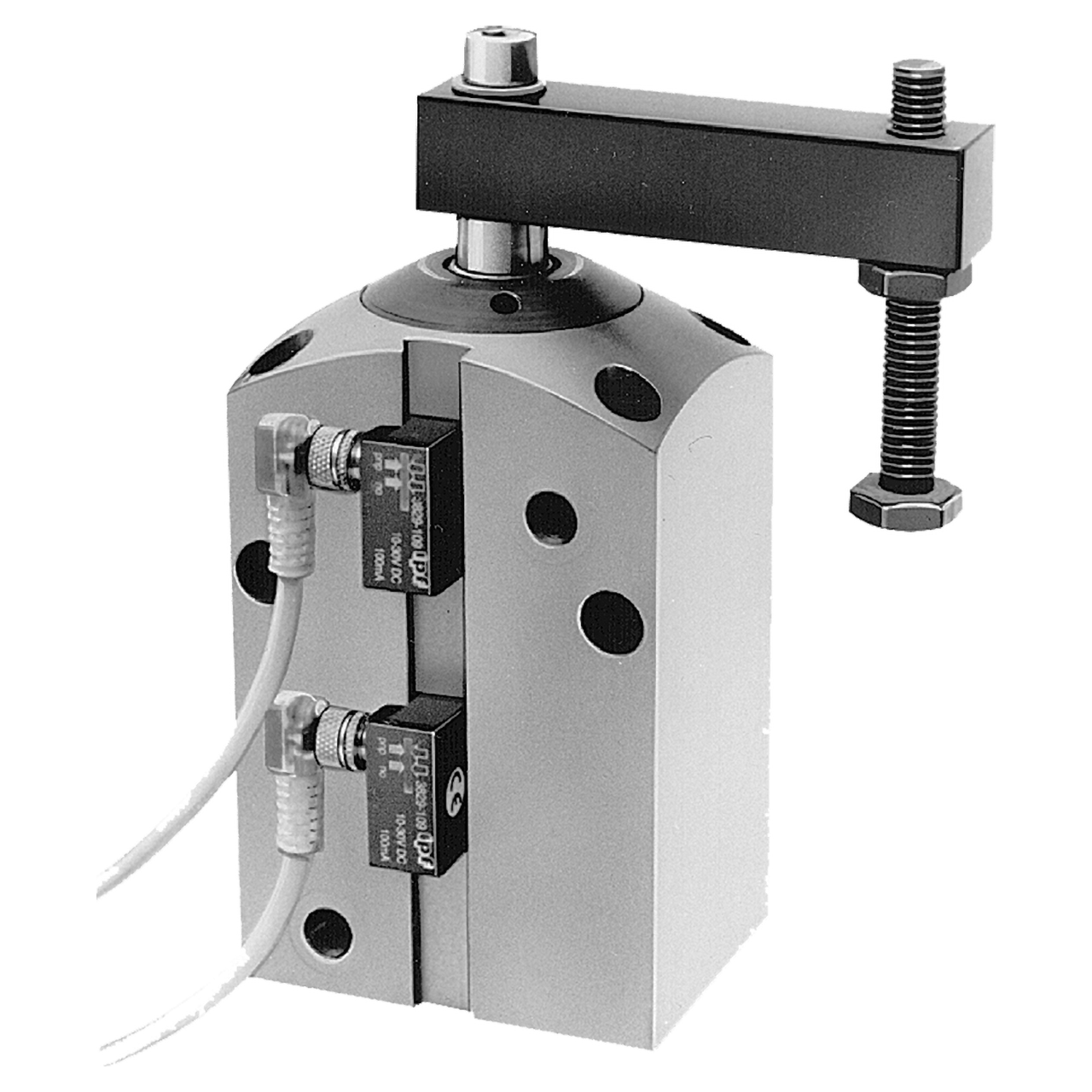

Optional Position Sensing

All of these clamps have a magnetic piston as standard and are ready to accept position sensing. Standard side grooves provide convenient sensor mounting and adjustment. Order two CLR-3829-234-PM (pnp) or CLR-3829-240-PM (npn) inductive proximity switches, and two CLR-3829-099-PM right-angle plugs with cable.

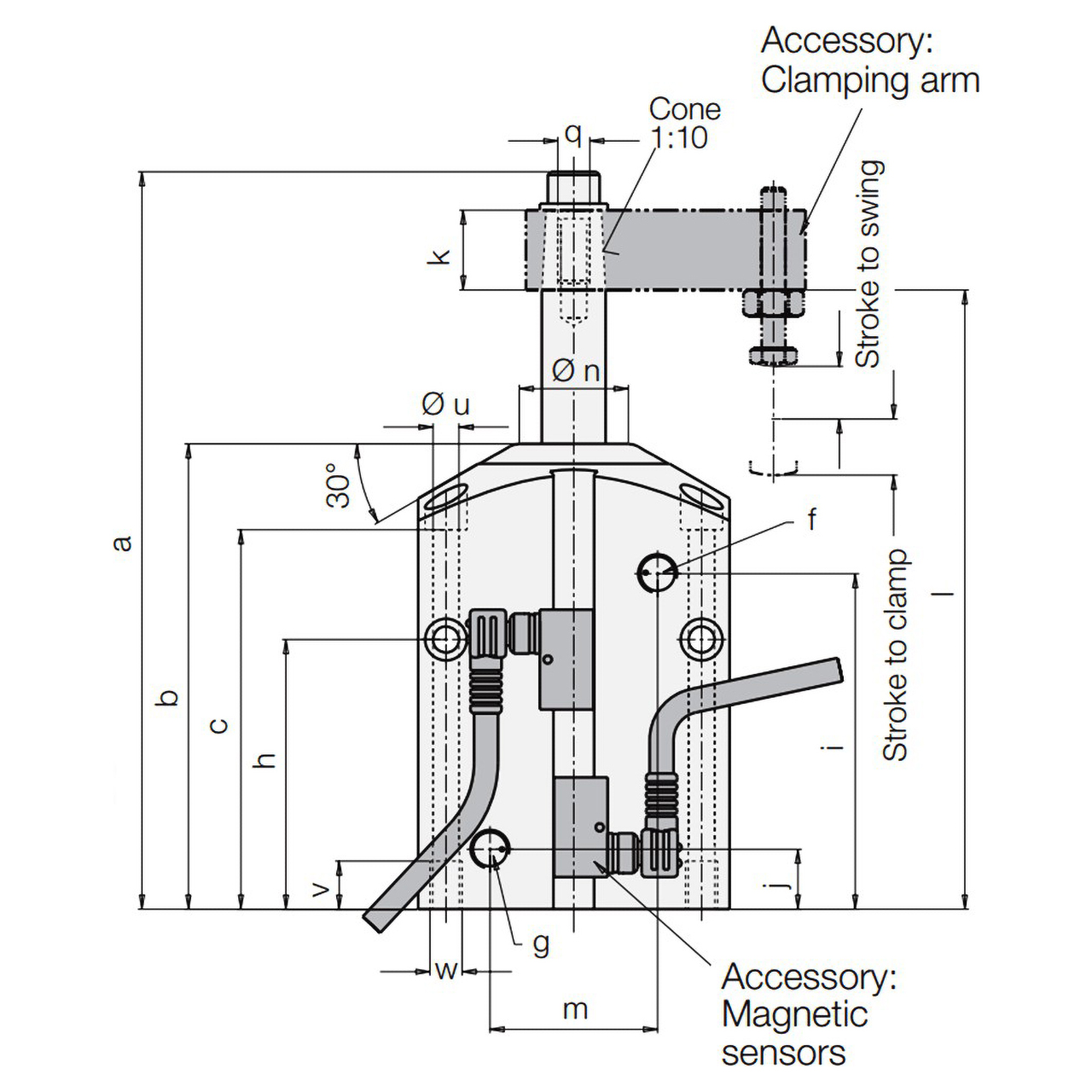

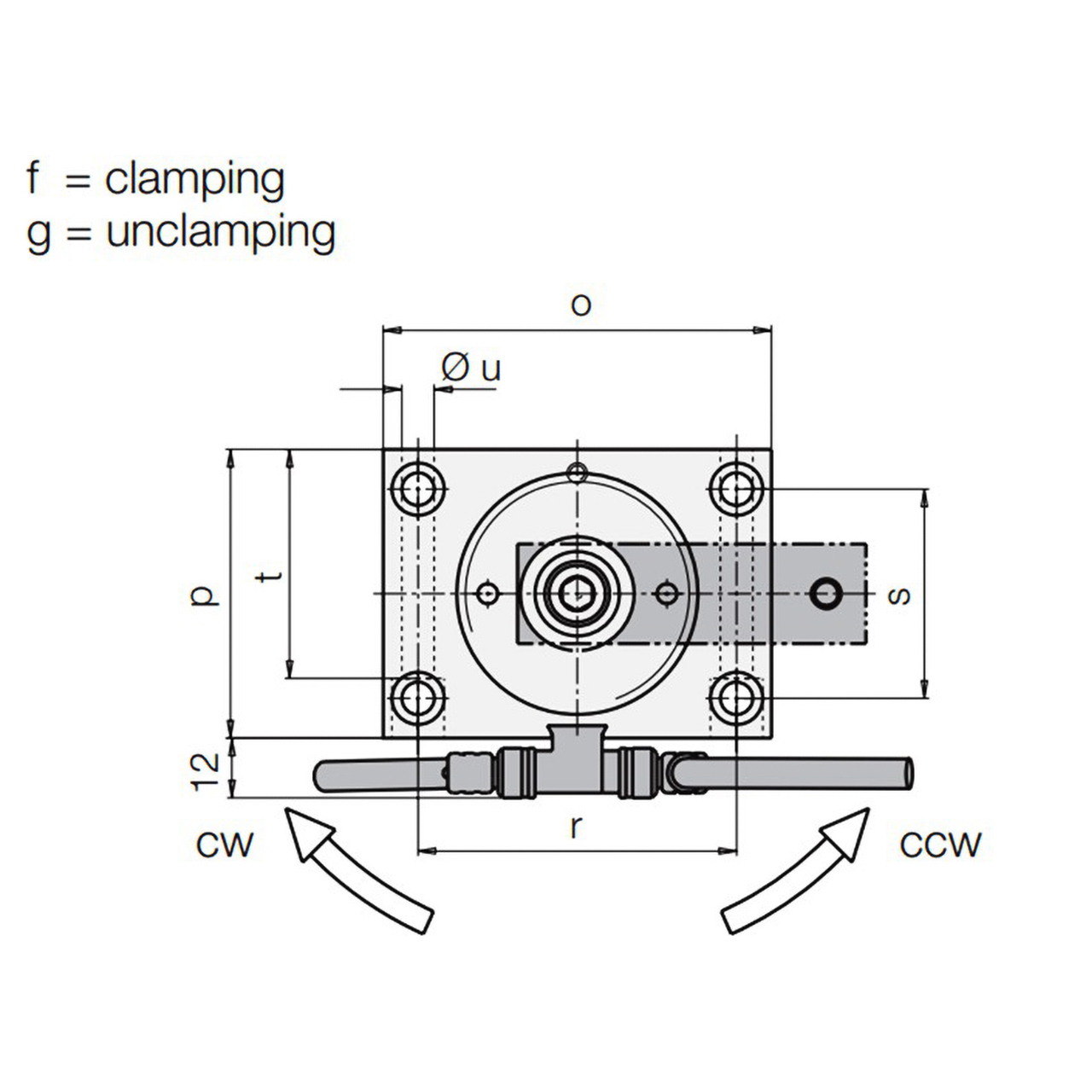

Material

Parts Specification
