Carr Lane CLR-HH-156-021-5J5J | 5/32" Inner Diameter x 21 Overall Length Fixture Hose

Product Information

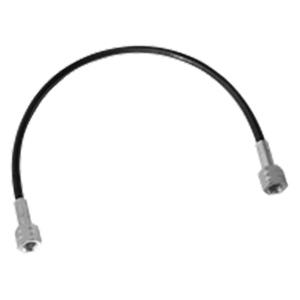

7250 psi max This exclusive small-diameter high-pressure hydraulic hose is especially designed for workholding applications. Can be used for flexible connections, or for rigid connections as an alternative to tubing. Easy to fit into tight spots, with a 1-5/8" minimum bend radius. 5/32" inside diameter, .090" wall thickness. Operating temperature range -40 to 212 DegreeF. 25,520 psi minimum burst pressure provides a 3.5 to 1 safety factor at 7250 psi.The version shown here has swivel-nut ends for 37 Degree-flare fittings. Choice of many standard lengths, from 6 to 24" long. Special lengths are available upon request. For longer runs, see Heavy-Duty Hoses in Related Products below.

Design Considerations & Safety Precautions

Do not use any type of hose other than our Heavy-Duty Hose or Fixture Hose with our power workholding products.
