Carr Lane L-40-8-28 | Liner Bushing

Liner Bushings

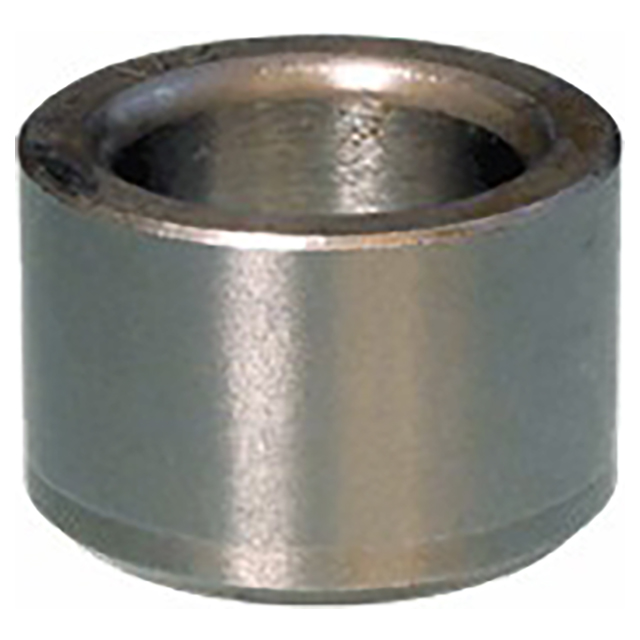

Liners are permanently installed bushings used to hold renewable drill bushings. The liner's ID has a precise sliding fit with the renewable bushing's OD. The liner accurately locates the renewable bushing and protects the jig plate from wear and damage caused by frequent bushing replacement.

Application Information

Liners are permanent bushings used to hold renewable drill bushings.

ID Tolerance

Standard Liner ID Tolerance:

• 3/16 to 3/8" +0.0001/+0.0004
• 7/16 to 5/8" +0.0002/+0.0005
• 3/4" +0.0003/+0.0006
• 7/8 to 1" +0.0004/+0.0007
• 1-3/8" +0.0006/+0.0010
• 1-3/4" +0.0008/+0.0012
• 2-1/4" and up +0.0010/+0.0015

OD Tolerance

Standard OD Tolerance:

• 5/16" +0.0016/+0.0013
• 7/16 to 5/8" +0.0017/+0.0014
• 3/4 to 1" +0.0018/+0.0015
• 1-1/4" +0.0020/+0.0017
• 1-3/8" +0.0022/+0.0018
• 1-3/4" +0.0023/+0.0019
• 2-1/4 to 2-3/4" +0.0025/+0.0021
• 3 to 4" +0.0028/+0.0023

Unground OD Tolerance:

• 5/32 to 13/64" +0.010/+0.005
• 1/4 to 7/16" +0.015/+0.010
• 1/2 to 2-1/4" +0.020/+0.015

Material

Parts Specification
