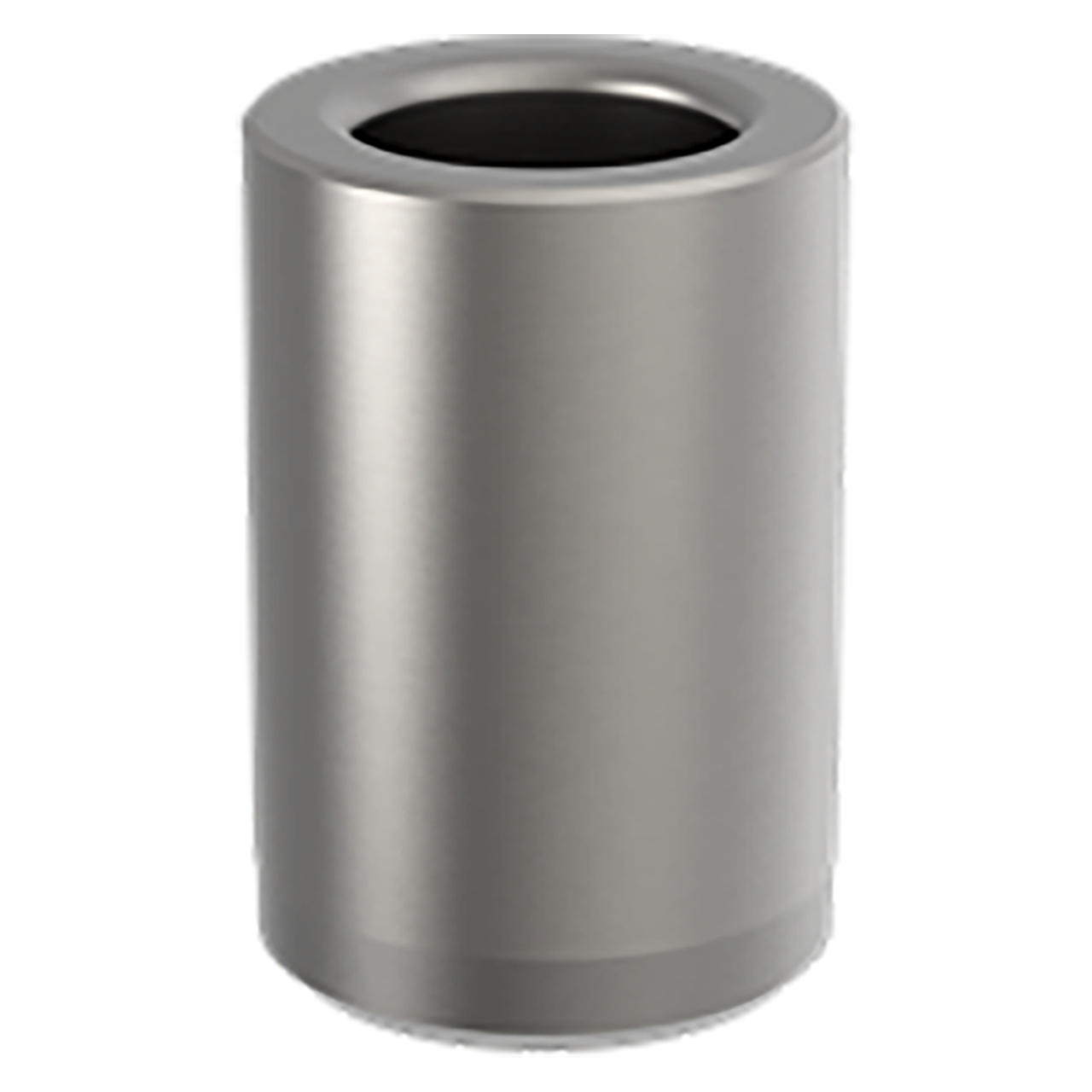

Carr Lane P-20-6-.1730 | 5/16" OD x 3/8" Length Quick-Ship Press-Fit Bushing

Quick-Ship Press-Fit Bushings (P)

P bushings are the most-popular and least-expensive type of drill bushing. P bushings are permanently pressed into the jig plate, usually flush with the top surface. They are generally used for single-operation drilling or reaming, when you do not expect to replace bushings during the tooling's lifetime. P bushings can be mounted closer together than headed bushings, but offer less resistance to heavy axial loads.

Application Information

P bushings are permanently pressed into the jig plate, usually flush with the top surface.

ID Tolerance

From #80 to 1/4"          +0.0001/+0.0004

Over 1/4 to 3/4"            +0.0001/+0.0005

Over 3/4 to 1-1/2"        +0.0002/+0.0006

OD Tolerance

1/4 to 13/32"          +0.0016/+0.0013

Material

Parts Specification
