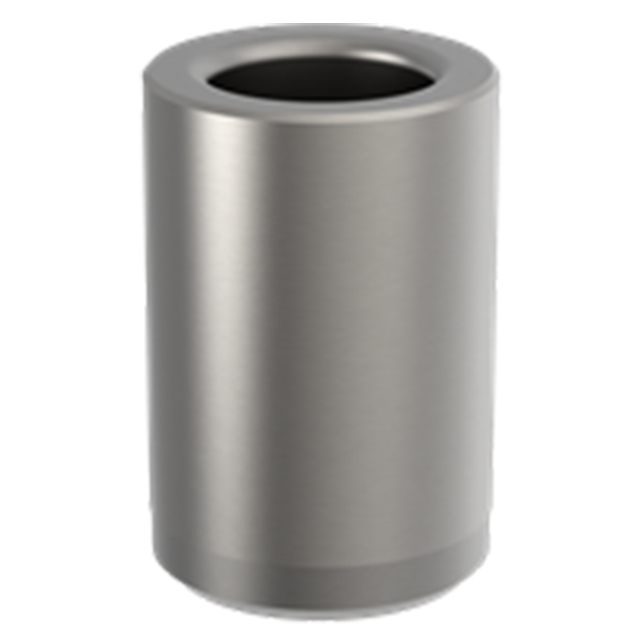

Carr Lane P-48-16-.4375 | 3/4" Diameter x 1" Length Quick-Ship Press-Fit Bushing

Quick-Ship Press-Fit Bushings

P bushings are the most-popular and least-expensive type of drill bushing. P bushings are permanently pressed into the jig plate, usually flush with the top surface. They are generally used for single-operation drilling or reaming, when you do not expect to replace bushings during the tooling's lifetime. P bushings can be mounted closer together than headed bushings, but offer less resistance to heavy axial loads.

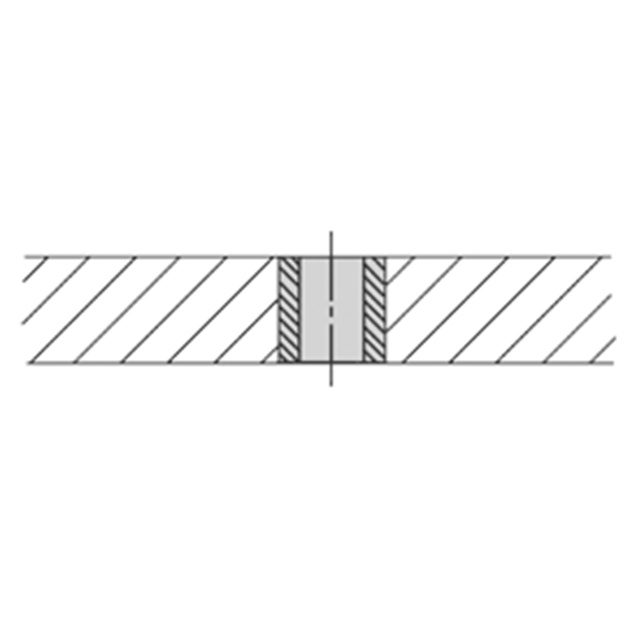

Application Information

P bushings are permanently pressed into the jig plate, usually flush with the top surface.

ID Tolerance

Standard ID Tolerance:

From #80 to 1/4"          +.0001/+.0004

Over 1/4 to 3/4"            +.0001/+.0005

Over 3/4 to 1-1/2"        +.0002/+.0006

OD Tolerance

Standard OD Tolerance:

5/32 to 13/64"        +.0016/+.0012

1/4 to 13/32"          +.0016/+.0013

7/16 to 5/8"            +.0017/+.0014

3/4 to 1"                 +.0018/+.0015

1-1/8 to 1-1/4"       +.0020/+.0017

1-3/8 to 1-1/2"      +.0022/+.0018

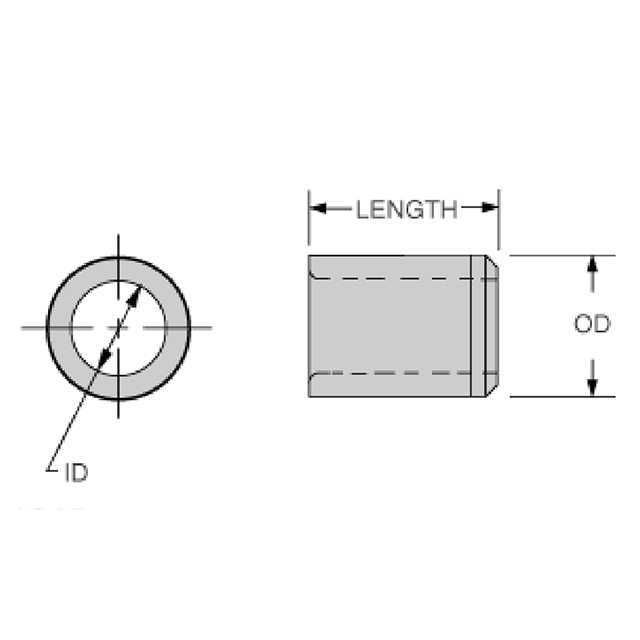

Material
