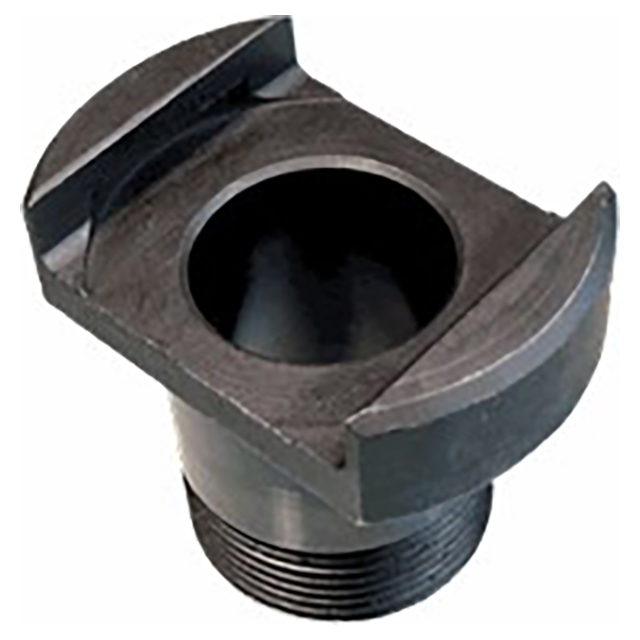

Precision liner bushing for mounting air-feed drills through a jig plate. One-piece design has two angled locking surfaces to lock the drill motor in place for superior strength. Optional heavy-duty type has precisely machined helical locking surfaces that mate exactly with the air-feed collar, for added impact resistance. Milled flats allow close hole spacing. Press fit into jig plate, then fasten from behind with a Lock Nut.
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 Stressproof Steel | Heat treated to achieve Rc 62-64 ID hardness | - | โ | โ |
| A Diameter (Inch) | B Diameter (Inch) | C (Inch) | D (Inch) | F Diameter (Inch) | G (Inch) | H (Inch) | L (Inch) | L.h. Thread (Inch) |
| 1.1252/1.1258" | 1.4990/1.4985" | 27/32" | 1-1/2" | 2-1/8" | 1.468" | 1-5/8" | 1-3/4" | 1-1/2"-12" |
