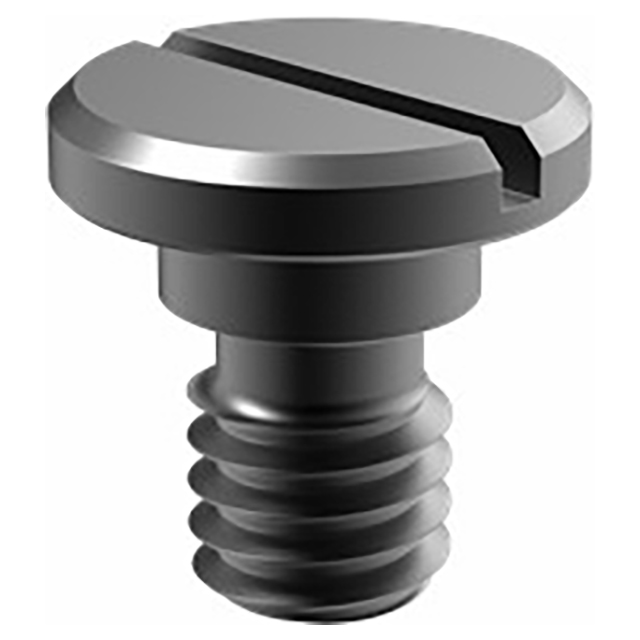

Lockscrews
are the most popular locking device for renewable drill bushings. Use on either the "slip" side or the "fixed" side of a slip/fixed renewable bushing. Lockscrews are simple, strong, compact, and economical.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS | |
| Mild Steel | - | Black Oxide | ✔ | ✔ |
| A (Inch) | B Diameter (Inch) | C Diameter (Inch) | E (Inch) | F (Inch) | Thread (Inch) |
| 11/16" | 1/4" | 7/16" | 3/8" | 0.200 / .194" | #10-32" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
