Carr Lane UL-20-5 | Un-A-Lok Liner Bushing

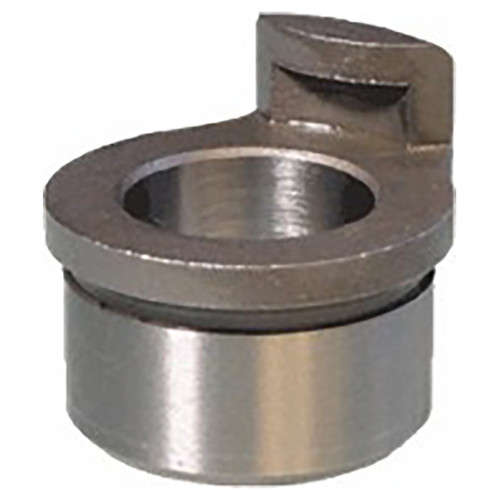

Un-A-Lok Liner Bushings

Un-A-Lok Liners are similar to HL head liners, except that they incorporate a sturdy locking tab that eliminates the need for a Lockscrew. UL Liners are permanent bushings used to hold SF renewable drill bushings. Although slightly more expensive than a head liner plus a Lockscrew, installation time is dramatically reduced.

Application Information

Un-A-Lok Liners are functionally similar to Head Liner Bushings, except that they incorporate a sturdy locking tab that eliminates the need for a Lockscrew, reducing installation time dramatically.

ID Tolerance

Standard Liner ID Tolerance:

• 3/16 to 5/16" +0.0001/+0.0004
• 1/2" +0.0002/+0.0005
• 3/4" +0.0003/+0.0006
• 1" +0.0004/+0.0007

OD Tolerance

Standard OD Tolerance:

• 5/16" +0.0016/+0.0013
• 1/2" +0.0017/+0.0014
• 3/4 to 1" +0.0018/+0.0015
• 1-3/8" +0.0022/+0.0018

Unground OD Tolerance:

• 5/16" +0.015/+0.010
• 1/2 to 2-1/4" +0.020/+0.015

Material

Parts Specification
