Colton Cutting Tools 61514 | Carbide End Mill 4 Flute Ball End Standard CCT-1 Coated 7/16" Diameter x 1" LOC x 2 3/4" OAL

$81.03 $42.76
(You save $38.27)
Brand:
Colton Industrial Tools
Mill Diameter (Inch):
7/16"
Mill Diameter (Decimal Inch):
0.4400"
Mill Diameter (mm):
11.11mm
Number of Flutes:
4
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.40mm
Overall Length (Inch):
2-3/4"
Overall Length (Decimal Inch):
2.7500"
Overall Length (mm):
69.85mm
Shank Diameter (Inch):
7/16"
Shank Diameter (Decimal Inch):
0.4400"
Shank Diameter (mm):
11.11mm
Finish/Coating:
CCT-1
Helix Angle:
30 Degree
Material:
Carbide
SKU:
25176612
UPC:
Weight:
0.20 LBS
Shipping:
Calculated at Checkout

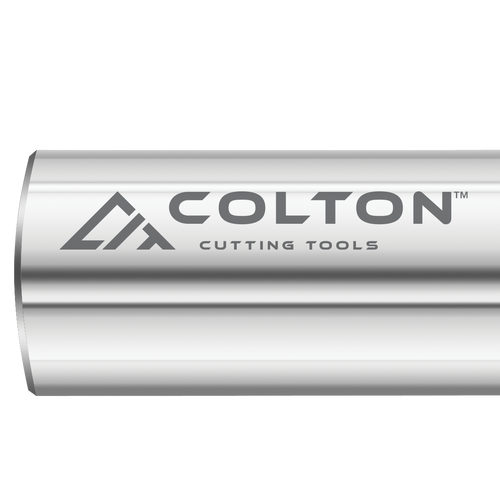

Photograph of Colton Cutting Tools 61514 | Carbide End Mill 4 Flute Ball End Standard CCT-1 Coated 7/16" Diameter x 1" LOC x 2 3/4" OAL

Made in the USA

Colton Cutting Tools carbide end mills are 100% manufactured in the USA by an ISO-certified facility, using premium grinding wheels and the finest grades of carbide found in the industry.

Attentiveness to edge prep, polishing, and post-production inspection yield pristine geometry and tight tolerances. Colton customers can depend on consistent performance that will reduce machining time, increase part count, and generate tremendous cost savings over the competition.

Advanced CCT-1 Coating

Colton carbide end mills offer an advanced CCT-1 coating. These coated end mills are often used when little or no coolant is being used, due to their unique ability to better handle high heat.

CCT-1 is a premier high performance coating targeting your toughest applications. Whether you are cutting cold roll steel or the most advanced aerospace alloys, CCT-1 will help you get the job done.

This proprietary blend of ingredients is designed to give you better performance in all cutting applications. High hardness, high elasticity, low friction coating excels in stainless steels and other high nickel-based alloys. Whether you are roughing or finishing, CCT-1 is up to the task.

Why choose Colton Cutting Tools with CCT-1

Save money on high-performance tooling, while still retaining the benefits of a high-performance coating. CCT-1 coated tools deliver incredible value and consistent performance.

Variety of end and length options

Offered in both ball and square end options, as well as stub, standard, and long lengths.

  • CNC ground in the USA
  • Premium Sub-Micrograin Solid Carbide
  • Engineered for high performance in aluminum, plastic, and easier to machine materials or where 2 flutes is preferred
  • Cutter diameter tolerance: +0.0000"/-0.002"
  • 30 Degree Helix, 4 Flutes, Ball End, Standard Length
  • h6 Shank tolerance for use with shrink-fit and other high performance tool holders
  • Number of flutes: 4
  • Finish / Coating: CCT-1
  • Mill Diameter (inch): 7/16"
  • Length of cut (inch): 1"
  • Overall Length (inch): 2-1/2"
  • Shank Diameter: 7/16"

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Colton Industrial Tools
Mill Diameter (Inch):
7/16"
Mill Diameter (Decimal Inch):
0.4400"
Mill Diameter (mm):
11.11mm
Number of Flutes:
4
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.40mm
Overall Length (Inch):
2-3/4"
Overall Length (Decimal Inch):
2.7500"
Overall Length (mm):
69.85mm
Shank Diameter (Inch):
7/16"
Shank Diameter (Decimal Inch):
0.4400"
Shank Diameter (mm):
11.11mm
Finish/Coating:
CCT-1
Helix Angle:
30 Degree
Material:
Carbide
