Colton Cutting Tools 61542 | Carbide End Mill 2 Flute Ball End Stub 3/32" Diameter x 3/16" LOC x 1/8" Shank x 1-1/2" OAL

$17.85 $8.29
(You save $9.56)
Brand:
Colton Industrial Tools
Mill Diameter (Inch):
3/32"
Mill Diameter (Decimal Inch):
0.0900"
Mill Diameter (mm):
2.38mm
Number of Flutes:
2
Length of Cut (Inch):
3/16"
Length of Cut (Decimal Inch):
0.1900"
Length of Cut (mm):
4.76mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1300"
Shank Diameter (mm):
3.18mm
Finish/Coating:
Uncoated
Helix Angle:
30 Degree
Material:
Carbide
SKU:
25180363
UPC:
Availability:
Ships same business day if ordered by 12:30PM PT
Weight:
0.06 LBS
Shipping:
Free Shipping

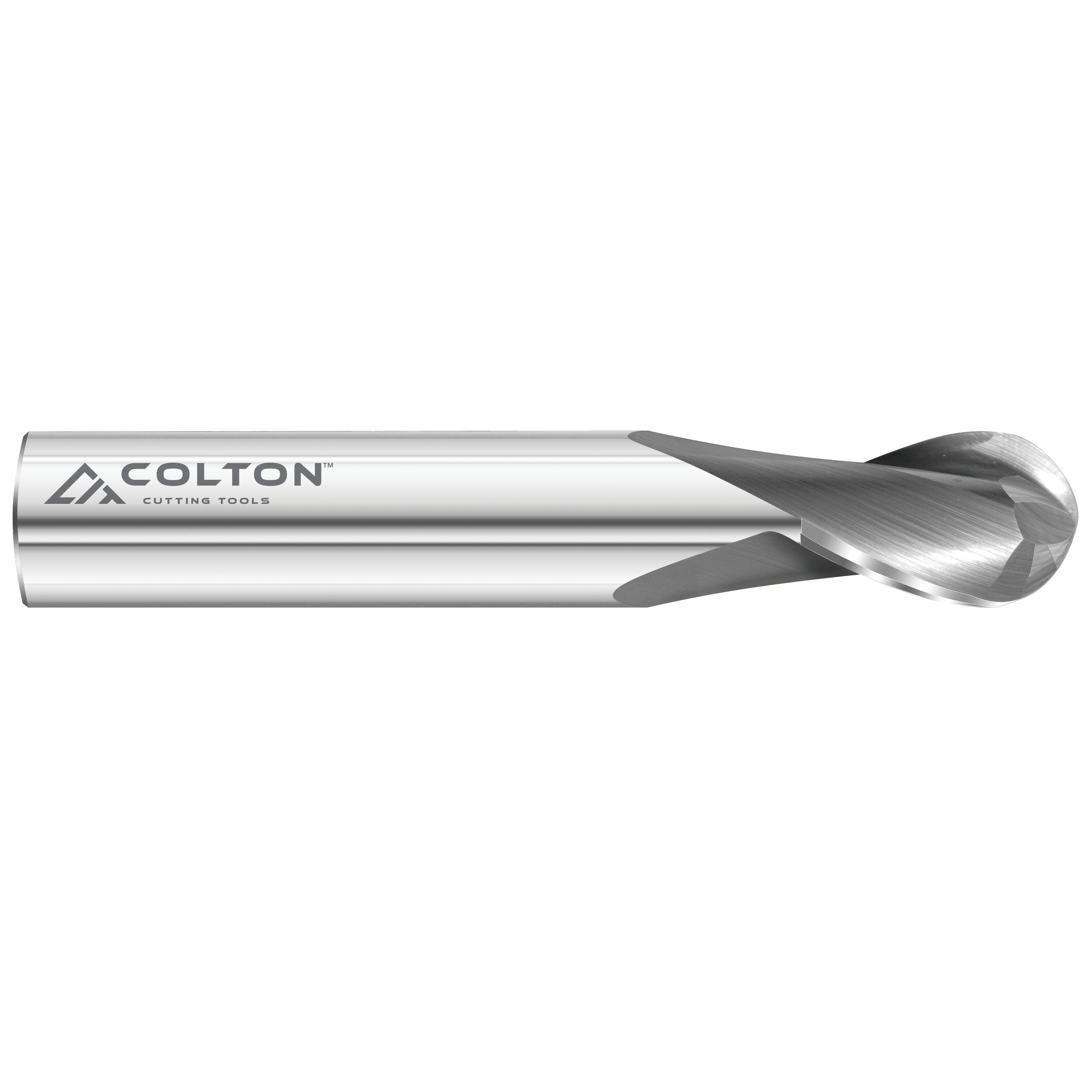

Image of a Colton 2 flute, ball end stub length end mill.

Colton customers can depend on consistent performance that will reduce machining time, increase part count, and generate tremendous cost savings over the competition. ISO-certified manufacturing yields attentiveness to edge prep, polishing, and post-production inspection for pristine geometry and tight tolerances.

Made in the USA

Colton Cutting Tool’s carbide end mills are 100% manufactured in the USA by an ISO-certified facility using premium grinding wheels and the finest grades of carbide found in the industry.

2 Flute, uncoated design

This series of end mills from Colton Industrial Tool is an uncoated design and comes in both square and ball end options. With options for stub, standard, and long lengths, plus multiple options for overall length, length of cut, and cutting diameter, there’s a Colton end mill for virtually any need. Incredible value in a 2-flute end mill.

  • CNC ground in the USA
  • Premium Sub-Micrograin Solid Carbide
  • Engineered for high performance in steel, stainless steel, titanium, and most other difficult to machine materials
  • Uncoated
  • 30 Degree Helix, 2 Flute, Ball End, Stub
  • h6 Shank tolerance for use with shrink-fit and other high performance tool holders
  • Shank Diameter: 1/8"

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Colton Industrial Tools
Mill Diameter (Inch):
3/32"
Mill Diameter (Decimal Inch):
0.0900"
Mill Diameter (mm):
2.38mm
Number of Flutes:
2
Length of Cut (Inch):
3/16"
Length of Cut (Decimal Inch):
0.1900"
Length of Cut (mm):
4.76mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1300"
Shank Diameter (mm):
3.18mm
Finish/Coating:
Uncoated
Helix Angle:
30 Degree
Material:
Carbide
