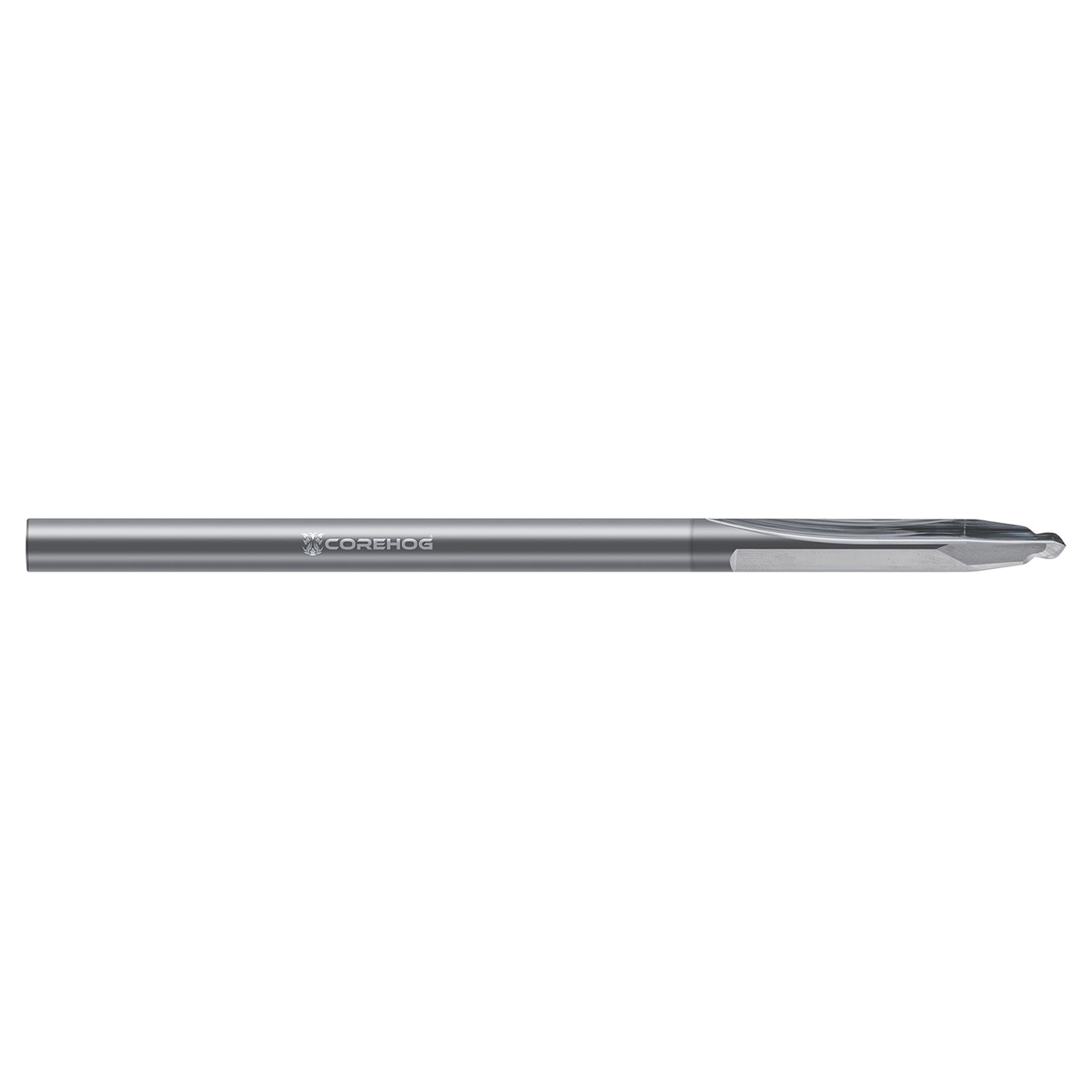

CoreHog C13983 | 0.1590" Drill Diameter x 0.1590" Shank x 1.0000" (1) Flute Length 2 Flute Chemical Vapor Deposition Diamond Coated Solid Carbide CFRP Drill

$95.70
Brand:
CoreHog
Flute Length (Inch):
1"
Flute Length (Decimal Inch):
1.0000"
Flute Length (mm):
25.40mm
Shank Diameter (Inch):
5/32"
Shank Diameter (Decimal Inch):
0.1590"
Shank Diameter (mm):
4.04mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Finish/Coating:
Chemical Vapor Deposition Diamond Coated
SKU:
10261968
Weight:
1.23 LBS
Shipping:
Free Shipping

This fully stocked selection of CoreHog CFRP drills, featuring specially engineered geometry that provides outstanding tool life, finish, and repeatability, delivers unmatched results in CFRP holemaking operations.

Features:

Features
  • Provides superior results in CFRP while delivering excellent performance in other laminate and stack composite materials
  • Designed with high strength and rigidity while maintaining tight tolerance
  • For use in both hand and CNC drilling operations
  • True crystalline CVD diamond coating for drastically improved hardness for outstanding abrasion resistance and higher feed rates
  • Solid carbide
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberC13983
Drill Diameter (Inch)0.1590"
Flute Length (Inch)1.0000" (1)
Shank Diameter (Inch)0.1590"
Overall Length (Inch)4.000" (4)
Size#21
Assembly Size Pairing#21
MetricN
CoatingChemical Vapor Deposition Diamond
SubstrateSolid Carbide
Number of Flutes2
