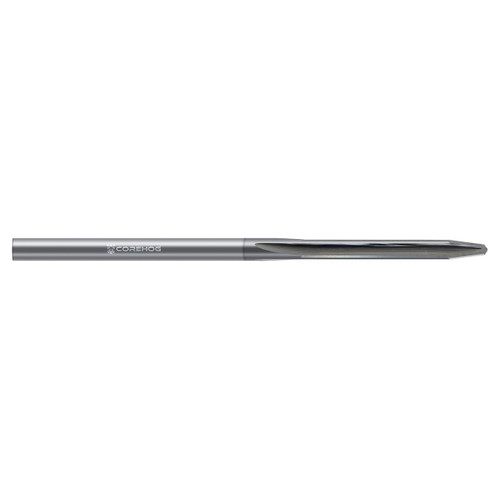

Tapered Drill Reamers, engineered to produce tight tolerance holes in composite laminates, are suitable for use in a wide range of composites and plastics and can be used to drill and ream in a single operation.
Features:
Features- 4 flute design and special "long nose" geometry greatly reduces delamination by avoiding grabbing or pushing on plies
- For use in both hand and CNC operations
- DLC coating for improved lubricity and wear resistance
- True crystalline CVD diamond coating for drastically improved hardness for outstanding abrasion resistance and higher feed rates
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | C14190 |
| Drill Diameter (Inch) | 0.1990" |
| Flute Length (Inch) | 1.5000" (1-1/2) |
| Shank Diameter (Inch) | 0.1990" |
| Overall Length (Inch) | 4.000" (4) |
| Size | #8 |
| Assembly Size Pairing | #8 |
| Metric | N |
| Coating | Chemical Vapor Deposition Diamond |
| Substrate | Solid Carbide |
| Number of Flutes | 4 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
CoreHog
Flute Length (Inch):
1-1/2"
Flute Length (Decimal Inch):
1.5000"
Flute Length (mm):
38.10mm
Shank Diameter (Inch):
13/64"
Shank Diameter (Decimal Inch):
0.1990"
Shank Diameter (mm):
5.05mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Number of Flutes:
4
Finish/Coating:
Chemical Vapor Deposition Diamond Coated
