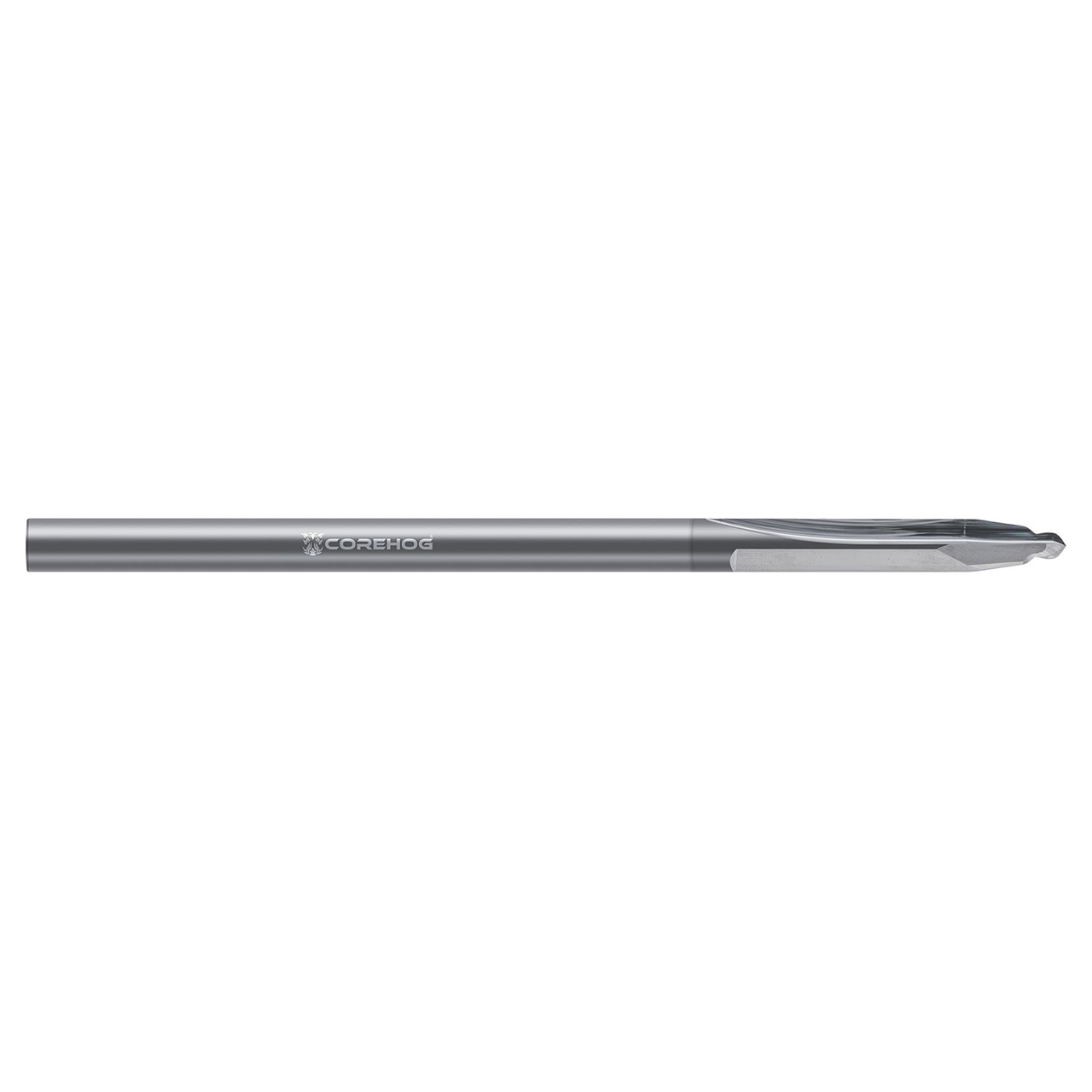

CoreHog C35352 | 0.1875" (3/16) Drill Diameter x 0.1875" (3/16) Shank x 1.0000" (1) Flute Length 2 Flute Uncoated Solid Carbide CFRP Drill

$47.20
Brand:
CoreHog
Flute Length (Inch):
1"
Flute Length (Decimal Inch):
1.0000"
Flute Length (mm):
25.40mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Finish/Coating:
Uncoated
SKU:
10261979
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

This fully stocked selection of CoreHog CFRP drills, featuring specially engineered geometry that provides outstanding tool life, finish, and repeatability, delivers unmatched results in CFRP holemaking operations.

Features:

Features
  • Provides superior results in CFRP while delivering excellent performance in other laminate and stack composite materials
  • Designed with high strength and rigidity while maintaining tight tolerance
  • For use in both hand and CNC drilling operations
  • Solid carbide
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberC35352
Drill Diameter (Inch)0.1875" (3/16)
Flute Length (Inch)1.0000" (1)
Shank Diameter (Inch)0.1875" (3/16)
Overall Length (Inch)4.000" (4)
Size3/16
Assembly Size Pairing3/16
MetricN
CoatingUncoated
SubstrateSolid Carbide
Number of Flutes2
