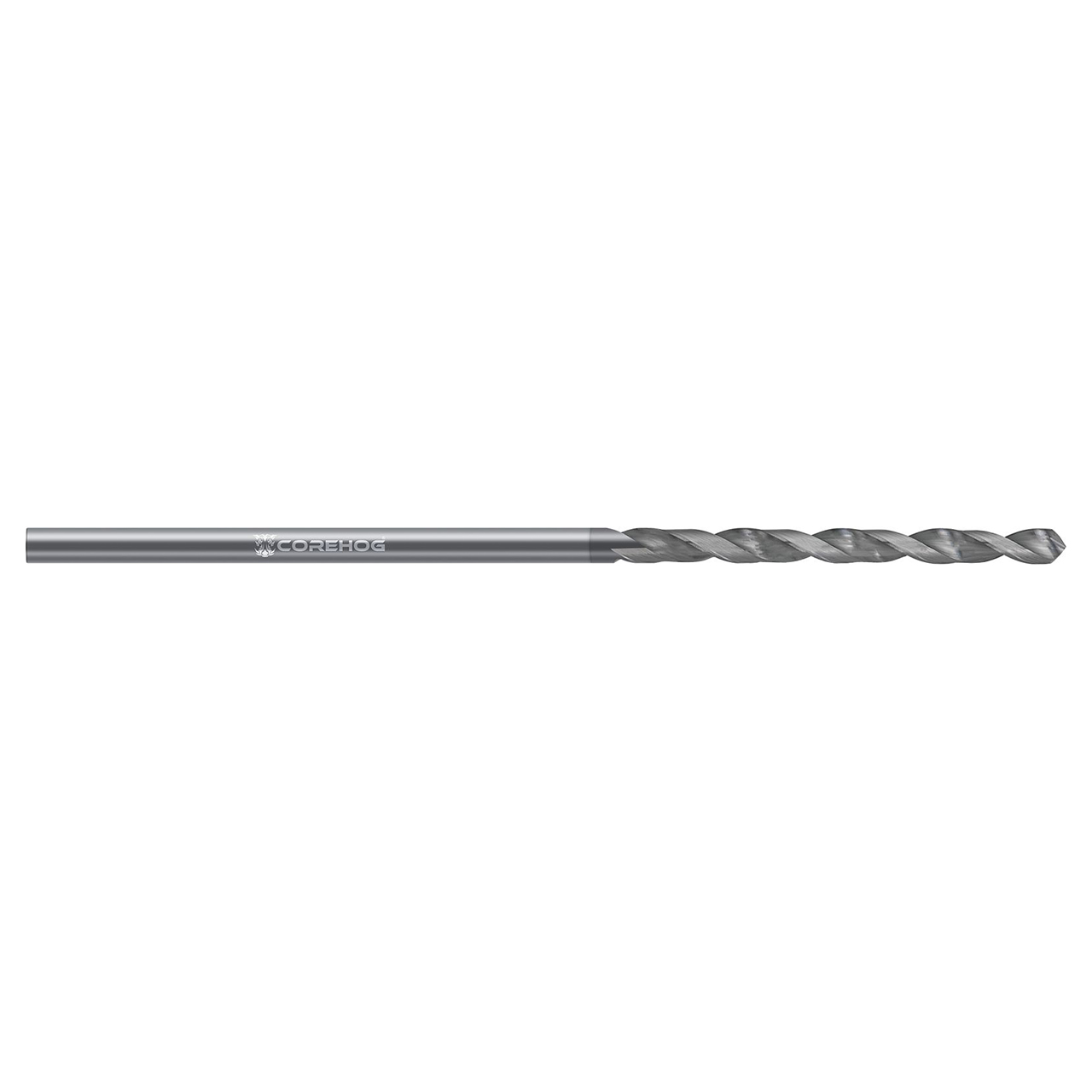

CoreHog C60041 | 0.1719" (11/64) Drill Diameter x 0.1719" (11/64) Shank x 1.5000" (1-1/2) Flute Length 2 Flute Diamond Like Carbon Coated Solid Carbide Jobber Length Drill Bit

$78.10
Brand:
CoreHog
Drill Bit Size (Wire):
11/64
Drill Point Angle:
118 Degree
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
Finish/Coating:
Diamond Like Carbon Coated
SKU:
10261786
Weight:
1.23 LBS
Shipping:
Free Shipping

Suitable for use in a wide range of composites and plastics, CoreHog's offering of 8 facet drills efficiently spreads out the tool pressure throughout the cut, eliminating delamination on exit.

Features
  • High strength design maximizes MRR
  • For use in hand and CNC operations
  • DLC coating for improved lubricity and wear resistance
  • Solid carbide
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberC60041
Drill Diameter (Inch)0.1719" (11/64)
Flute Length (Inch)1.5000" (1-1/2)
Shank Diameter (Inch)0.1719" (11/64)
Secondary Point Angle (Degree)80 Degree
Overall Length (Inch)6.000" (6)
Size11/64
MetricN
Point Angle (Degree)118 Degree
CoatingDLC
Substratesolid carbide
Number of Flutes2

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
CoreHog
Drill Bit Size (Wire):
11/64
Drill Point Angle:
118 Degree
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
Finish/Coating:
Diamond Like Carbon Coated
