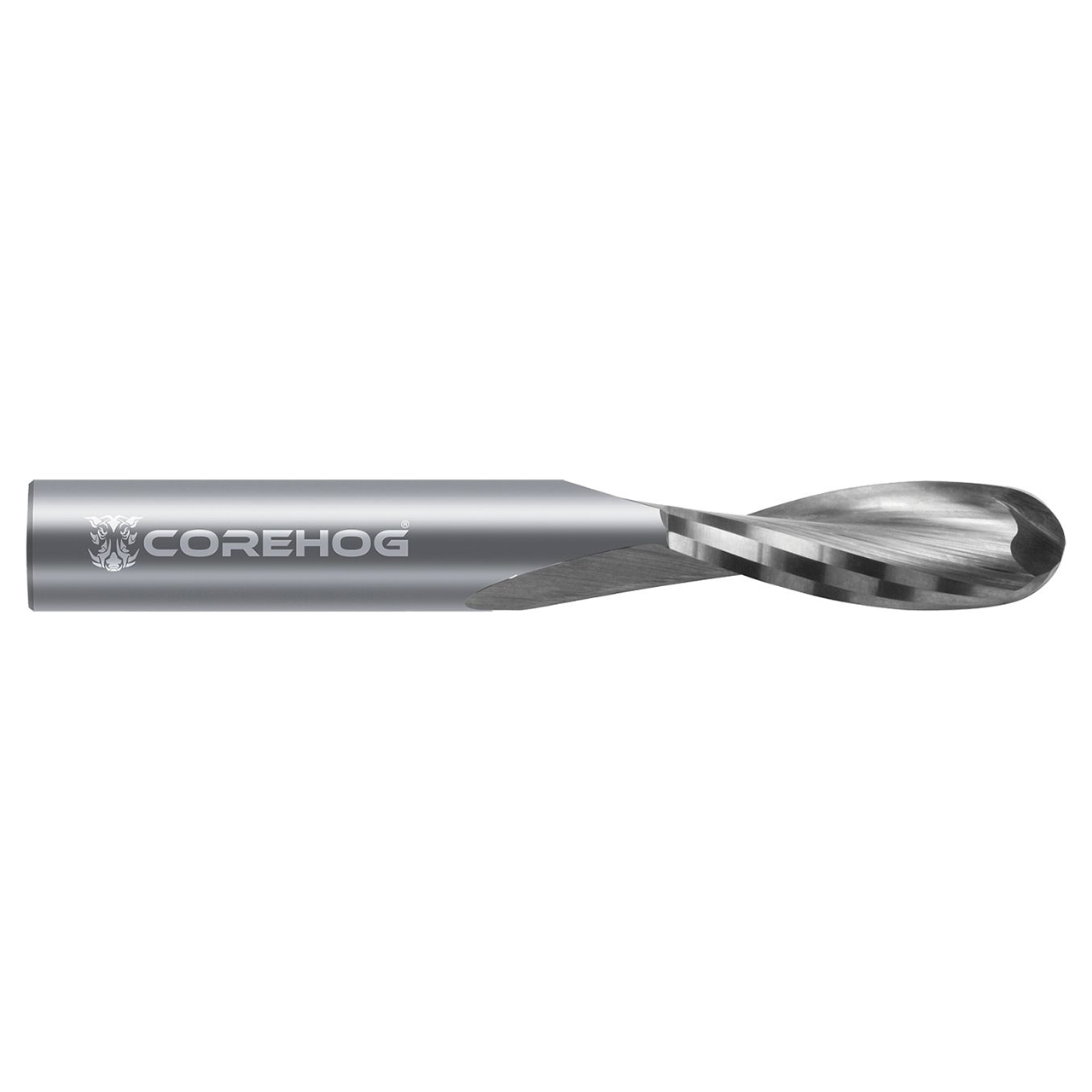

CoreHog C82706 | 0.1875" (3/16) Cutter Diameter x 0.1875" (3/16) Shank x 0.5620" (9/16) LOC 2 Flute Uncoated Solid Carbide Ball End Mill

$38.40
Brand:
CoreHog
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Mill Diameter (mm):
4.76mm
Number of Flutes:
2
Length of Cut (Inch):
9/16"
Length of Cut (Decimal Inch):
0.5620"
Length of Cut (mm):
50.80mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Finish/Coating:
Uncoated
SKU:
25231916
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

With a ball end design, engineered for profiling complex shapes, this offering of Plastic Cutters-2 Flute-Ball-Upcut are designed with increased rake and relief for improved cutting action at the tip of the ball.

Features:

  • Solid carbide
  • Polished flute face
  • Ball end design engineered for profiling complex shapes
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberC82706
Cutter Diameter (Inch)0.1875" (3/16)
Length of Cut (Inch)0.5620" (9/16)
Shank Diameter (Inch)0.1875" (3/16)
Overall Length (Inch)2.000" (2)
MetricN
CoatingUncoated
SubstrateSolid Carbide
Number of Flutes2

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
CoreHog
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Mill Diameter (mm):
4.76mm
Number of Flutes:
2
Length of Cut (Inch):
9/16"
Length of Cut (Decimal Inch):
0.5620"
Length of Cut (mm):
50.80mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Finish/Coating:
Uncoated
