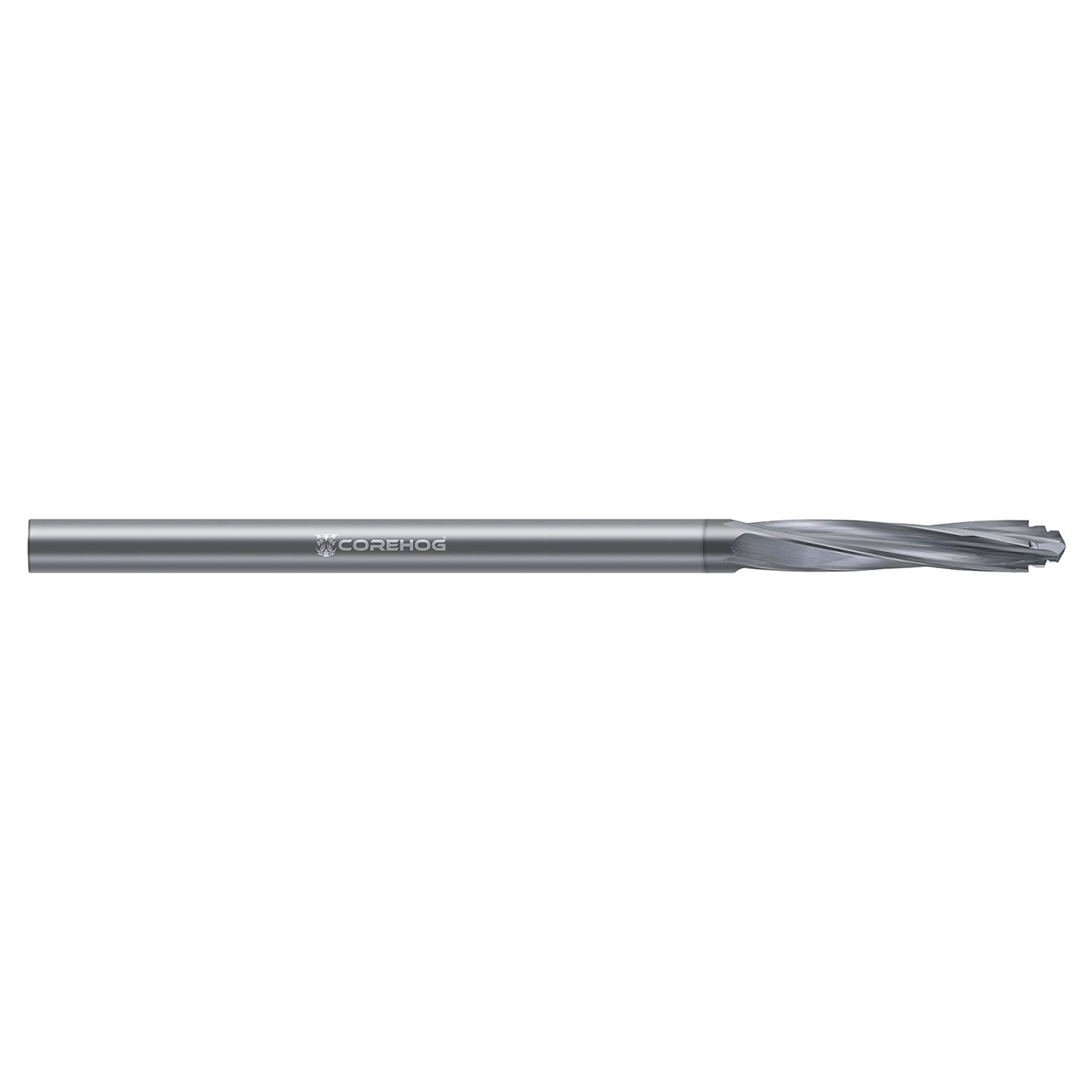

CoreHog C95375 | 0.1590" Drill Diameter x 0.1590" Shank x 1.5000" (1-1/2) Flute Length 4 Flute Uncoated Solid Carbide Step Drill Bit

$59.00
Brand:
CoreHog
Finish/Coating:
Uncoated
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
SKU:
10245203
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Suitable for use in a wide range of composites and plastics, CoreHog's fully stocked offering of helical step drills are designed to produce tight toleranced holes with minimal tool pressure.

Features:
  • Proprietary multi-stepped nose design spreads out load, eliminating delamination and burr on exit
  • Designed to produce tight toleranced holes with minimal tool pressure
  • Suitable for use in a wide range of composites and plastics
  • Engineered to improve hole finish
  • For use in both hand and CNC operations
  • Solid carbide
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberC95375
Drill Diameter (Inch)0.1590"
Flute Length (Inch)1.5000" (1-1/2)
Shank Diameter (Inch)0.1590"
Overall Length (Inch)4.000" (4)
Size#21
MetricN
CoatingUncoated
Substratesolid carbide
Number of Flutes4
