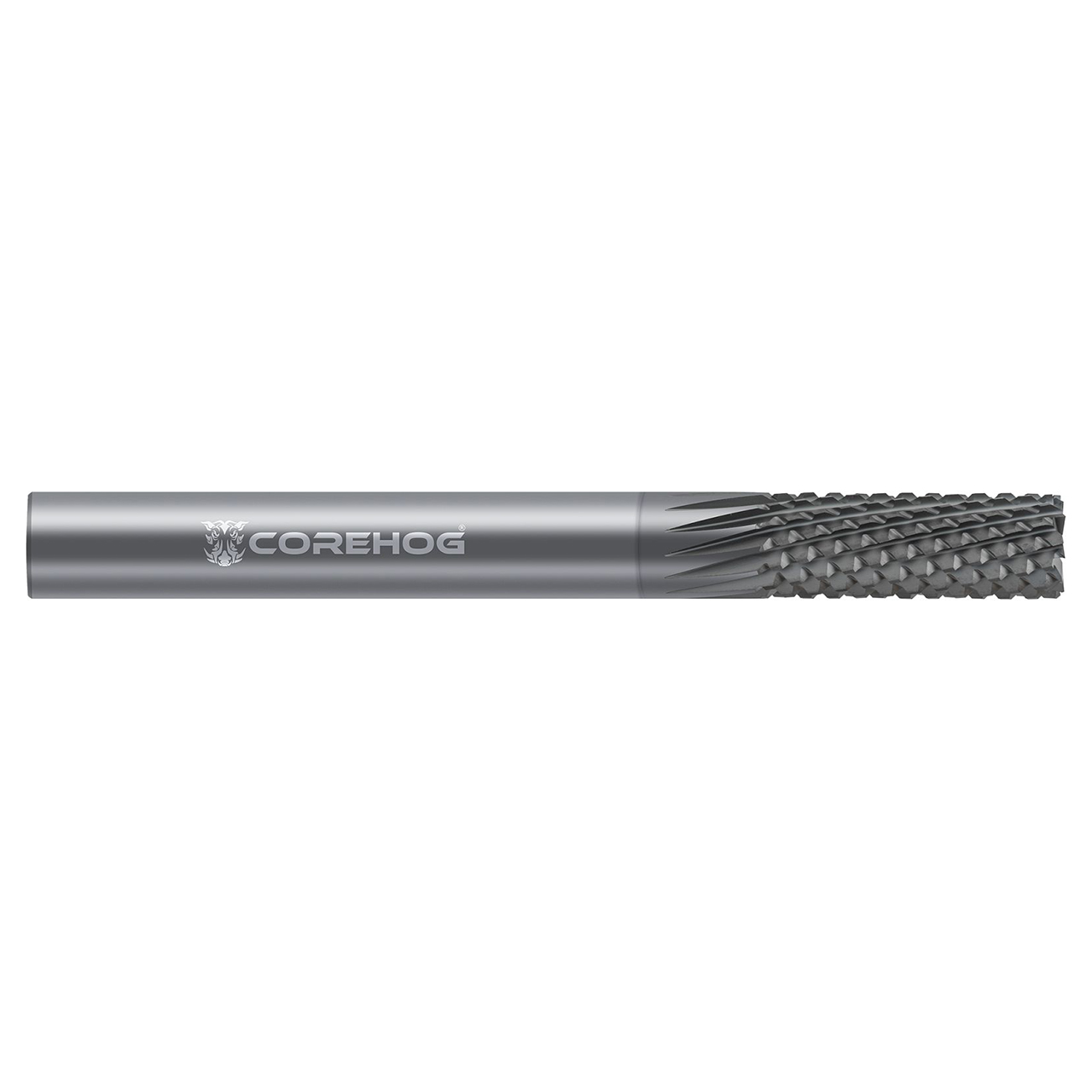

CoreHog C95468 | 0.2500" (1/4) Cutter Diameter x 0.2500" (1/4) Shank x 0.7500" (3/4) LOC 8 Flute Chemical Vapor Deposition Diamond Coated Solid Carbide Diamond Pattern Router Bit

$138.00
Brand:
CoreHog
Cutter Diameter (Inch):
1/4"
Cutter Diameter (Decimal Inch):
0.2500"
Number of Flutes:
8
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Finish/Coating:
CVD Diamond
Material:
Solid Carbide
interval quantity:
1
SKU:
25231879
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

The downcut geometry of these fully stocked CoreHog CFRP routers-burr end style-downcut works to stabilize the part against the fixture, and reduces vibration, by applying downward pressure.

Features
  • Free cutting geometry minimizes delamination and provides excellent part finish
  • Burr style end allows for ramping, not suited for plunge cutting
  • Optimized for trimming CFRP and provides excellent performance in S-glass and other fiberglass materials
  • True crystalline CVD diamond coating for drastically improved hardness for outstanding abrasion resistance and higher feed rates
  • Solid carbide
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberC95468
Cutter Diameter (Inch)0.2500" (1/4)
Length of Cut (Inch)0.7500" (3/4)
Shank Diameter (Inch)0.2500" (1/4)
Overall Length (Inch)2.500" (2-1/2)
MetricN
CoatingCVD Diamond
Substratesolid carbide
Number of Flutes8
