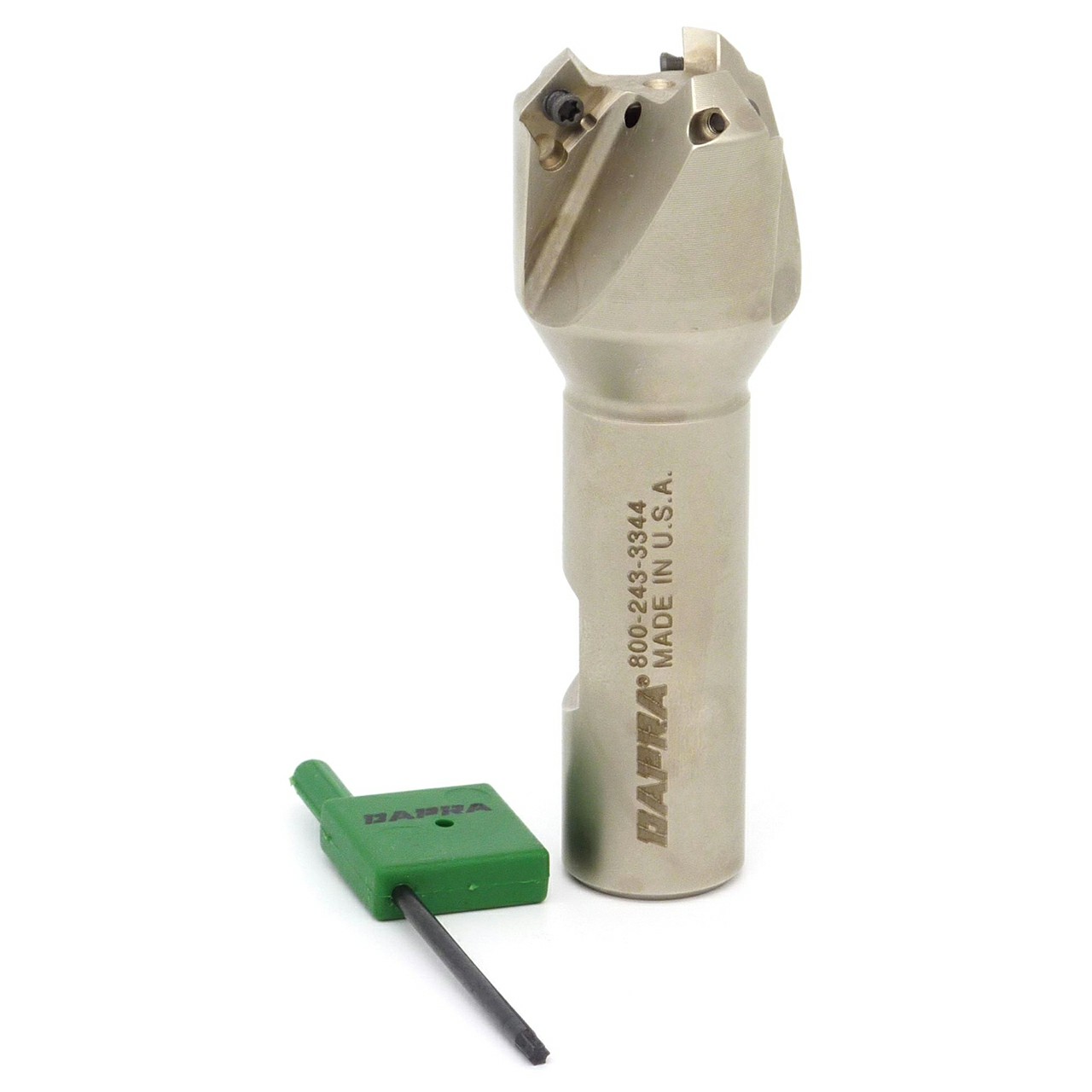

Dapra 22300 | CMEM0750-45-R35-3C 0.750"-1.180" Diameter x 10.00mm Insert Size x 3.500" OAL 3 Edge Steel Square Shoulder End Mill

$345.52
Brand:
Dapra
Cutting Diameter (Inch):
3/4-1-3/16""
Cutting Diameter (Decimal Inch):
0.7500-1.1800""
Cutting Diameter (mm):
19.05mm-29.97mm
Overall Length/Projection (Inch):
3/4-1-3/16""
Overall Length/Projection (Decimal Inch):
0.7500-1.1800""
Overall Length/Projection (mm):
19.05mm-29.97mm
SKU:
23299379
Weight:
0.00 LBS
Shipping:
Free Shipping
Dapra 22300 | CMEM0750-45-R35-3C 0.750"-1.180" Diameter x 10.00mm Insert Size x 3.500" OAL 3 Edge Steel Square Shoulder End Mill

Product Specifications
Manufacturer Part Number22300
Cutting Diameter (Inch)0.750"-1.180"
Mounting diameter (Inch)0.750"
Overall Length (Inch)3.500"
Insert size (mm)10.00mm
Effective Length (Inch)1.450"
Cutting Angle From Vertical45 degrees
Flutes3
Body MaterialSteel
Product TypeSquare Shoulder End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Dapra
Cutting Diameter (Inch):
3/4-1-3/16""
Cutting Diameter (Decimal Inch):
0.7500-1.1800""
Cutting Diameter (mm):
19.05mm-29.97mm
Overall Length/Projection (Inch):
3/4-1-3/16""
Overall Length/Projection (Decimal Inch):
0.7500-1.1800""
Overall Length/Projection (mm):
19.05mm-29.97mm
