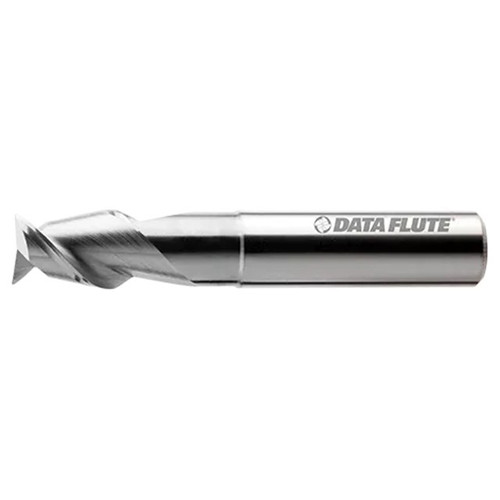

The HSM is a 2 flute rougher/finisher that uses the geometries of the ARF series and couples them with an extended reach design. The stub flute length, in conjunction with a wide range of reach lengths, makes the HSM series a great choice for roughing in aluminum and other non-ferrous materials in hard to reach depths of cuts.
Features:
- High Performance Carbide
- Periphery and Pocketing Operations
- Reduced Neck for Reach and Stability
- High Helix for Chip Removal
Product Specifications
| Manufacturer Part Number | HSM21000C4 |
| Diameter (Inch) | 3/4" |
| Shank Diameter (Inch) | 3/4" |
| Length of Cut (Inch) | 1" |
| Overall Length (Inch) | 4" |
| Coating | C4 |
| Product Type | Reduced Neck Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Data Flute
Diameter (Inch):
3/4"
Shank Diameter (Inch):
3/4"
Length of Cut (Inch):
1"
Overall Length (Inch):
4"
Finish/Coating:
C4
Diameter (Decimal Inch):
1.0000"
Length of Cut (Decimal Inch):
1.2500"
Shank Diameter (Decimal Inch):
1.0000"
